onsemi NCP1235AD065R2G
Regular price
Dhs. 355,916.57
Regular price
Dhs. 374,649.02
Sale price
Dhs. 355,916.57
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,916.57 | Dhs. 355,916.57 |
| 15+ | Dhs. 344,677.10 | Dhs. 5,170,156.50 |
| 25+ | Dhs. 337,184.12 | Dhs. 8,429,603.00 |
| 50+ | Dhs. 318,451.67 | Dhs. 15,922,583.50 |
| 100+ | Dhs. 280,986.77 | Dhs. 28,098,677.00 |
| N+ | Dhs. 56,197.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

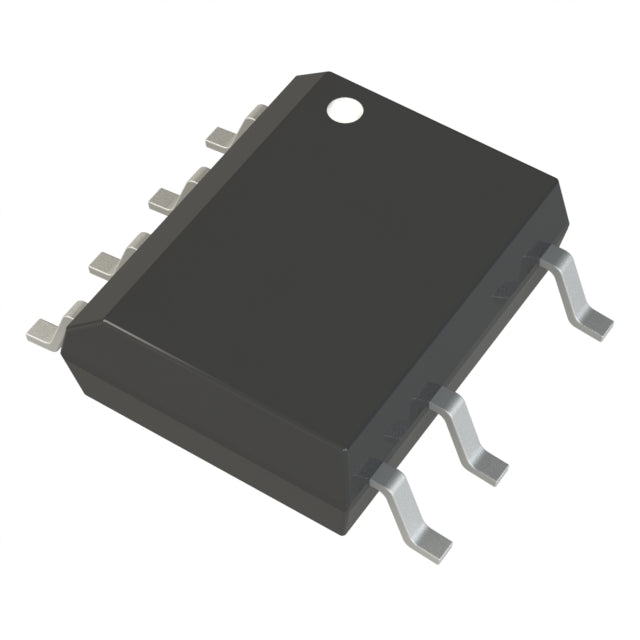

onsemi NCP1235AD065R2G Flyback AC/DC Controller IC
The NCP1235AD065R2G is a high-performance fixed-frequency flyback controller from onsemi, engineered for isolated AC/DC power supply applications in aerospace, automotive, industrial, and telecommunications systems.
Key Features
- 65kHz Fixed Switching Frequency - Optimized for compact transformer design and reduced EMI
- Wide Supply Voltage Range - Operates from 9.5V to 28V with 10.5V startup
- Comprehensive Protection - Current limiting, overload, overpower, over-temperature, and overvoltage safeguards
- 80% Maximum Duty Cycle - Enables efficient power conversion across load conditions
- Industrial Temperature Range - Rated for -40°C to 125°C operation
- Space-Saving Package - 7-lead SOIC surface mount for automated assembly
Applications
Ideal for isolated DC/DC converters, auxiliary power supplies, battery chargers, and industrial control systems requiring reliable, long-lifecycle components with full manufacturer traceability.
Why Choose Our Stock
We supply authentic onsemi components with complete documentation, manufacturer traceability, and authorized distributor sourcing. Every unit ships with datasheet access and quality certification for mission-critical applications.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 10.5 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
NCP1235AD065R2G.pdf
×
