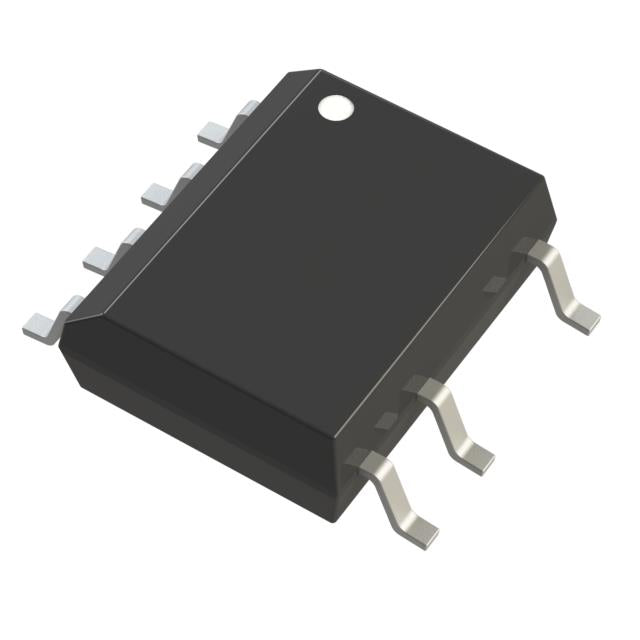

onsemi NCP1247DD100R2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,842.93 | Dhs. 355,842.93 |
| 15+ | Dhs. 344,605.78 | Dhs. 5,169,086.70 |
| 25+ | Dhs. 337,114.35 | Dhs. 8,427,858.75 |
| 50+ | Dhs. 318,385.78 | Dhs. 15,919,289.00 |
| 100+ | Dhs. 280,928.63 | Dhs. 28,092,863.00 |
| N+ | Dhs. 56,185.73 | Price Inquiry |
Request Quote / Inquiry
NCP1247DD100R2G - High-Performance Flyback Controller IC from onsemi
The NCP1247DD100R2G is a precision flyback controller IC from onsemi designed for AC-DC offline switching power supply applications. This advanced controller delivers reliable performance with 100kHz switching frequency and isolated flyback topology, making it ideal for compact, efficient power conversion designs in industrial, telecommunications, and consumer electronics applications.
Key Features & Benefits
- 100kHz Switching Frequency - Enables smaller transformer and filter component sizes for compact designs
- Isolated Flyback Topology - Provides electrical isolation between input and output for enhanced safety
- Comprehensive Fault Protection - Integrated current limiting, over-load, over-power, over-temperature, and over-voltage protection ensures robust operation
- Wide Supply Voltage Range - Operates from 8.9V to 28V with 12V startup voltage
- High Duty Cycle - 80% maximum duty cycle for improved efficiency
- Extended Temperature Range - Operates reliably from -40°C to 150°C (TJ) for demanding environments
- Compact Surface Mount Package - 7-SOIC package (8-SOIC footprint, 7 leads) for space-efficient PCB layouts
Applications
The NCP1247DD100R2G is perfectly suited for AC-DC offline switching power supplies, flyback converters, auxiliary power supplies, and isolated DC-DC converters across aerospace, automotive, industrial automation, and telecommunications sectors.
Authorized Distributor - Full Traceability
We are an authorized distributor providing genuine onsemi components with complete manufacturer documentation, traceability, and warranty support for your critical design-in applications.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8.9V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| ROHS |  |
NCP1247DD100R2G.pdf
