onsemi NCP1250BSN100T1G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,985.37 | Dhs. 355,985.37 |
| 15+ | Dhs. 344,743.72 | Dhs. 5,171,155.80 |
| 25+ | Dhs. 337,249.30 | Dhs. 8,431,232.50 |
| 50+ | Dhs. 318,513.22 | Dhs. 15,925,661.00 |
| 100+ | Dhs. 281,041.08 | Dhs. 28,104,108.00 |
| N+ | Dhs. 56,208.22 | Price Inquiry |
Request Quote / Inquiry

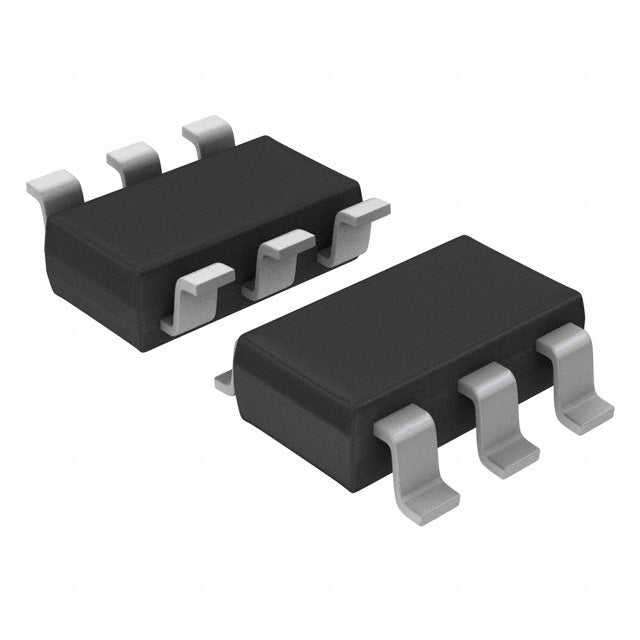

NCP1250BSN100T1G - Flyback PWM Controller IC by onsemi
The NCP1250BSN100T1G is a high-performance flyback PWM controller from onsemi, designed for isolated AC-DC and DC-DC power supply applications. This controller IC features a 100kHz switching frequency and operates from an 8.8V to 28V supply voltage range, making it ideal for aerospace, automotive, industrial, and telecommunications power management systems.
Key Features & Benefits
- Isolated Flyback Topology - Provides galvanic isolation for safety-critical applications
- 100kHz Switching Frequency - Enables compact transformer design and reduced component size
- Wide Supply Voltage Range - 8.8V to 28V operation with 18V start-up voltage
- Comprehensive Protection - Over-power, over-voltage, and short-circuit fault protection
- 80% Maximum Duty Cycle - Optimized for high-efficiency power conversion
- Extended Temperature Range - -40°C to 125°C junction temperature for harsh environments
- Compact Surface Mount Package - 6-TSOP (SOT-23-6 Thin) for space-constrained designs
Applications
- Isolated AC-DC power supplies
- Auxiliary power supplies for industrial equipment
- Telecom and networking infrastructure
- Automotive and transportation systems
- Battery chargers and power adapters
Why Choose Authorized Distribution?
As an authorized onsemi distributor, we guarantee 100% authentic components with full manufacturer traceability, complete documentation, and warranty support. Every NCP1250BSN100T1G ships with certification and is backed by our commitment to long lifecycle availability.
Need technical support or design-in assistance? Our engineering team provides reference designs, application notes, and expert guidance to help you integrate the NCP1250BSN100T1G into your power supply design.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 8.8V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Over Power, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
NCP1250BSN100T1G.pdf
