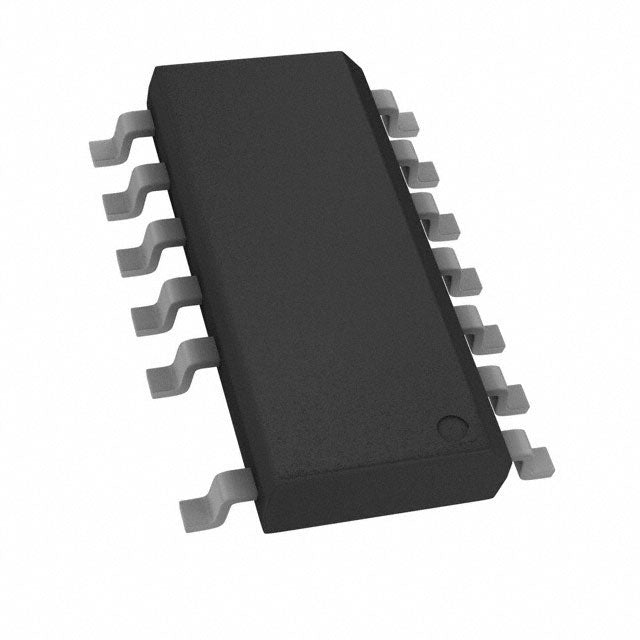

onsemi NCP1336ADR2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,877.81 | Dhs. 355,877.81 |
| 15+ | Dhs. 344,639.56 | Dhs. 5,169,593.40 |
| 25+ | Dhs. 337,147.40 | Dhs. 8,428,685.00 |
| 50+ | Dhs. 318,416.99 | Dhs. 15,920,849.50 |
| 100+ | Dhs. 280,956.17 | Dhs. 28,095,617.00 |
| N+ | Dhs. 56,191.23 | Price Inquiry |
Request Quote / Inquiry
NCP1336ADR2G Flyback PWM Controller IC
The NCP1336ADR2G from onsemi is a high-performance flyback PWM controller designed for isolated AC-DC and DC-DC power conversion applications. This advanced controller IC delivers reliable power management with comprehensive protection features, making it ideal for aerospace, automotive, industrial, and telecommunications systems.
Key Features & Benefits
- Wide Supply Voltage Range: 9V to 28V operation with 15V start-up voltage
- Isolated Flyback Topology: Proven architecture for safe, efficient power conversion
- Comprehensive Fault Protection: Current limiting, over-temperature, over-voltage, and short-circuit protection
- Extended Operating Temperature: -40°C to 150°C (TJ) for harsh environments
- Surface Mount Package: 14-SOIC for automated assembly and space-efficient designs
- RoHS Compliant: Meets environmental standards for global markets
Applications
This controller is well-suited for power supply designs in industrial equipment, telecommunications infrastructure, automotive electronics, and aerospace systems requiring long lifecycle support and proven reliability.
Authorized Distributor Advantages
We provide authorized distributor stock with full manufacturer documentation, traceability certificates, and design-in support. Our commitment to long lifecycle availability ensures your programs remain supported throughout their entire production run, mitigating obsolescence risk.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width), 13 Leads |
| Supplier Device Package | 14-SOIC |
| ROHS |  |
NCP1336ADR2G.pdf
