onsemi NCP1339EDR2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,985.37 | Dhs. 355,985.37 |
| 15+ | Dhs. 344,743.72 | Dhs. 5,171,155.80 |
| 25+ | Dhs. 337,249.30 | Dhs. 8,431,232.50 |
| 50+ | Dhs. 318,513.22 | Dhs. 15,925,661.00 |
| 100+ | Dhs. 281,041.08 | Dhs. 28,104,108.00 |
| N+ | Dhs. 56,208.22 | Price Inquiry |
Request Quote / Inquiry

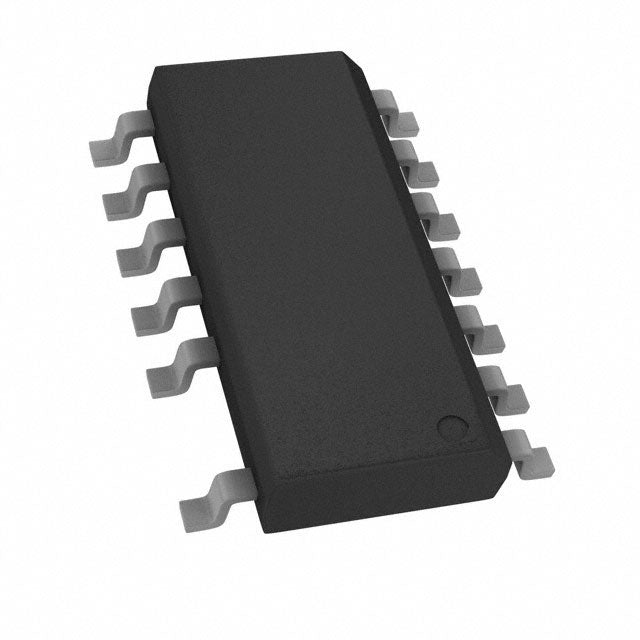

onsemi NCP1339EDR2G Flyback AC/DC Offline Switching Controller
The NCP1339EDR2G from onsemi is a high-performance isolated flyback AC/DC offline switching controller designed for reliable power conversion in aerospace, automotive, industrial, and telecommunications applications. This surface-mount 14-SOIC controller operates across a wide supply voltage range of 10V to 28V with a 15V startup voltage, ensuring robust performance in demanding environments.
Key Features & Benefits
- Isolated Flyback Topology: Provides electrical isolation for enhanced safety and noise immunity
- Wide Operating Temperature Range: -40°C to 125°C (TJ) for extreme environment reliability
- Comprehensive Fault Protection: Current limiting, overload, over-temperature, and over-voltage protection safeguard your designs
- Compact Surface Mount Package: 14-SOIC (0.154", 3.90mm width) with 13 leads for space-efficient PCB layouts
- Authentic onsemi Component: Sourced from authorized distributors with full manufacturer documentation and traceability
Applications
Ideal for power supply designs in aerospace avionics, automotive electronics, industrial control systems, and telecommunications infrastructure where long lifecycle support and component authenticity are critical.
Quality & Authenticity Guarantee
Every NCP1339EDR2G controller is sourced from authorized onsemi distributors, ensuring genuine components with complete manufacturer documentation, traceability certificates, and long-term availability commitments. RoHS compliant for environmental compliance.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width), 13 Leads |
| Supplier Device Package | 14-SOIC |
| ROHS |  |
NCP1339EDR2G.pdf
