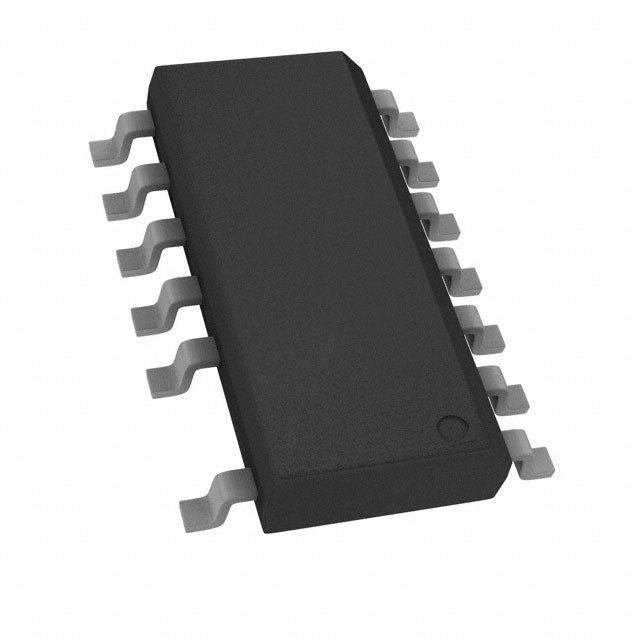

onsemi NCP1339JDR2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,985.37 | Dhs. 355,985.37 |
| 15+ | Dhs. 344,743.72 | Dhs. 5,171,155.80 |
| 25+ | Dhs. 337,249.30 | Dhs. 8,431,232.50 |
| 50+ | Dhs. 318,513.22 | Dhs. 15,925,661.00 |
| 100+ | Dhs. 281,041.08 | Dhs. 28,104,108.00 |
| N+ | Dhs. 56,208.22 | Price Inquiry |
Request Quote / Inquiry
NCP1339JDR2G - AC/DC Offline Switching Controller IC
The NCP1339JDR2G from onsemi is a high-performance flyback AC/DC offline switching controller designed for isolated power supply applications. This advanced controller IC delivers reliable power conversion with comprehensive fault protection, making it ideal for industrial, telecommunications, and automotive power systems.
Key Features & Benefits
- Flyback Topology: Optimized for isolated power supply designs with excellent efficiency
- Wide Supply Voltage Range: Operates from 10V to 28V (Vcc/Vdd) with 15V start-up voltage
- Comprehensive Protection: Built-in current limiting, overload, over-temperature, and over-voltage protection
- Extended Temperature Range: Operates reliably from -40°C to 125°C (TJ) for demanding environments
- Surface Mount Package: 14-SOIC (3.90mm width) for automated assembly and space-efficient designs
- RoHS Compliant: Meets environmental standards for global deployment
Applications
This switching controller is perfectly suited for aerospace power modules, automotive electronics, industrial control systems, telecommunications infrastructure, and high-reliability embedded systems requiring isolated power conversion with long lifecycle support.
Why Choose Authorized Distribution?
When you source the NCP1339JDR2G through authorized channels, you receive genuine onsemi components with full manufacturer documentation, traceability certificates, and warranty protection. Our commitment to long lifecycle availability ensures your critical programs remain supported throughout their entire production run.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width), 13 Leads |
| Supplier Device Package | 14-SOIC |
| ROHS |  |
NCP1339JDR2G.pdf
