onsemi NCP1366EABAYDR2G
Regular price
Dhs. 355,842.93
Regular price
Dhs. 374,571.50
Sale price
Dhs. 355,842.93
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,842.93 | Dhs. 355,842.93 |
| 15+ | Dhs. 344,605.78 | Dhs. 5,169,086.70 |
| 25+ | Dhs. 337,114.35 | Dhs. 8,427,858.75 |
| 50+ | Dhs. 318,385.78 | Dhs. 15,919,289.00 |
| 100+ | Dhs. 280,928.63 | Dhs. 28,092,863.00 |
| N+ | Dhs. 56,185.73 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

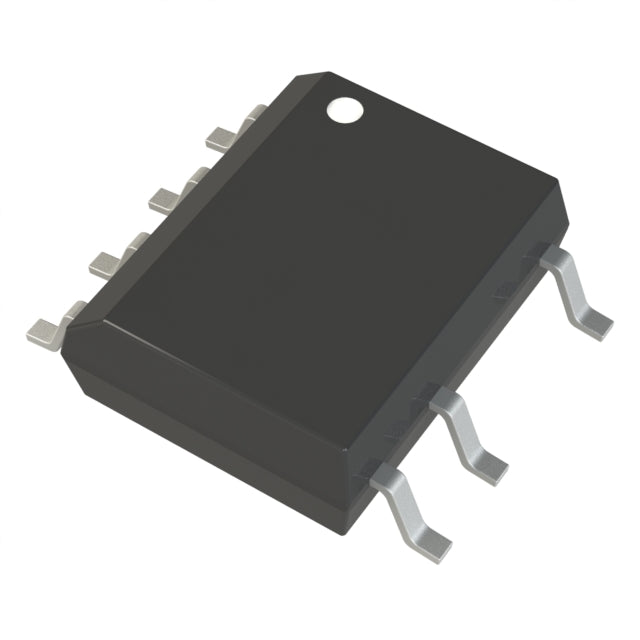

onsemi NCP1366EABAYDR2G Flyback Switching Controller
The NCP1366EABAYDR2G is a high-performance AC/DC offline flyback switching controller from onsemi, designed for cost-effective power supply applications up to 20W. This controller features an 80kHz switching frequency and operates from a wide supply voltage range of 6.6V to 28V with an 18V startup threshold.
Key Features & Benefits
- Isolated Output Design: Provides electrical isolation for enhanced safety and noise immunity in your power supply design
- Comprehensive Protection: Built-in current limiting, over-power, over-voltage, and short circuit protection safeguards your system
- Wide Operating Range: Functions reliably across -40°C to 125°C junction temperature for demanding industrial and automotive applications
- Space-Saving Package: Compact 7-lead SOIC surface mount package (8-SOIC, 3.90mm width) minimizes PCB footprint
- Cost-Effective Solution: External switch design allows flexibility in power stage selection while maintaining low system cost
Typical Applications
Ideal for auxiliary power supplies, standby power, battery chargers, LED drivers, and low-power AC/DC adapters in consumer electronics, industrial equipment, and telecommunications infrastructure.
Quality & Authenticity Guaranteed
All units are sourced from authorized distributors with full manufacturer documentation and traceability. RoHS compliant for environmental compliance in global markets.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 6.6V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | 80kHz |
| Power (Watts) | 20 W |
| Fault Protection | Current Limiting, Over Power, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| ROHS |  |
NCP1366EABAYDR2G.pdf
×
