onsemi NCP152MX280120TCG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.15 | $1.15 |
| 15+ | $1.11 | $16.65 |
| 25+ | $1.09 | $27.25 |
| 50+ | $1.03 | $51.50 |
| 100+ | $0.91 | $91.00 |
| N+ | $0.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.2V, 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | -, 0.26V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-XDFN (1.2x1.2) |
| ROHS |  |

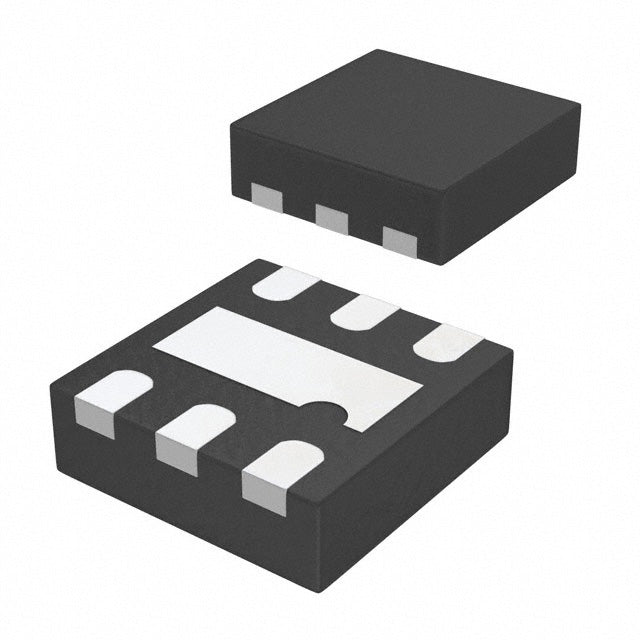

The NCP152MX280120TCG from onsemi is a dual-output LDO regulator delivering 1.2V and 2.8V, each capable of 150mA. It features a high PSRR of 75dB at 1kHz, ensuring clean power for noise-sensitive applications. The quiescent current is 100µA. Housed in an ultra-compact 6-XDFN (1.2x1.2mm) package, it is ideal for space-constrained portable devices requiring multiple voltage rails.
- Dual Outputs: Provides 1.2V and 2.8V rails, reducing component count.
- High PSRR: 75dB at 1kHz ensures excellent noise suppression for audio/RF circuits.
- Ultra-Compact: 1.2x1.2mm XDFN package is among the smallest available.
- Low Quiescent Current: 100µA helps extend battery life in portable devices.
Dual-Rail MCU Systems
Provides both 1.2V core and 2.8V I/O voltages from a single LDO, simplifying power design for mixed-voltage microcontrollers.
Portable Audio Players
75dB PSRR at 1kHz ensures clean power for audio DACs and amplifiers, minimizing hum and distortion.
Wireless Modules
Dual outputs power RF transceivers (2.8V) and digital logic (1.2V) in Bluetooth and Zigbee modules.
Compact Sensor Hubs
The tiny 1.2x1.2mm XDFN package fits into miniature sensor modules, providing separate rails for analog and digital sections.
Battery-Powered Cameras
Efficient dual-rail regulation extends battery life while powering image sensors (2.8V) and processors (1.2V).
IoT Edge Devices
Combines low quiescent current with dual outputs for always-on sensing and periodic wireless transmission.
- Q: What are the output voltages?
- A: Dual outputs: 1.2V and 2.8V.
- Q: What is the maximum output current per channel?
- A: 150mA per channel.
- Q: What is the input voltage range?
- A: Not specified in provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: 0.26V at 150mA for the 2.8V output; not specified for 1.2V output.
- Q: What is the quiescent current?
- A: 100µA.
- Q: What is the PSRR?
- A: 75dB at 1kHz.
- Q: What package is available?
- A: 6-XDFN (1.2x1.2mm).
