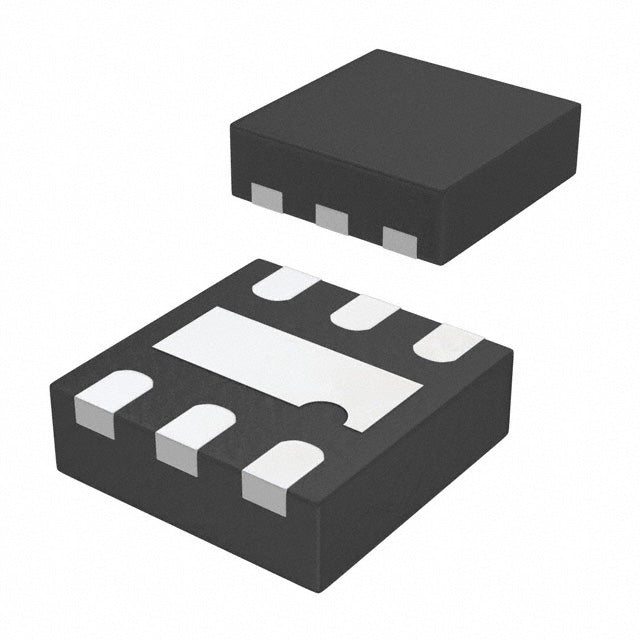

onsemi NCP152MX330180TCG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.16 | $1.16 |
| 15+ | $0.27 | $4.05 |
| 25+ | $0.26 | $6.50 |
| 50+ | $0.25 | $12.50 |
| 100+ | $0.22 | $22.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 150mA, 0.22V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-XDFN (1.2x1.2) |
| ROHS |  |
The NCP152MX330180TCG from onsemi is a dual-output LDO linear regulator providing fixed 1.8V and 3.3V rails, each capable of 150mA. With a quiescent current of 100 µA and PSRR of 75dB at 1kHz, it delivers clean, efficient power for multi-rail portable devices. The 6-XDFN (1.2x1.2) package saves board space.
- Dual Outputs: 1.8V and 3.3V in one package reduces component count.
- Compact Size: 6-XDFN (1.2x1.2) ideal for space-limited designs.
- Good PSRR: 75dB at 1kHz filters switching noise.
- Low Quiescent Current: 100 µA for both channels combined.
Dual-Rail MCU Systems
Provides both 1.8V (core) and 3.3V (I/O) rails from a single LDO, simplifying power design for microcontrollers.
FPGA Power Supplies
Supplies VCCINT (1.8V) and VCCO (3.3V) for small FPGAs, with 150mA per rail for logic and I/O.
Sensor Hubs
Powers 1.8V digital sensors and 3.3V analog front-ends, with 75dB PSRR at 1kHz for clean measurements.
Portable Audio Players
Dual outputs power DSP core (1.8V) and DAC/amplifier (3.3V), reducing component count.
IoT Modules
Supplies 1.8V for memory and 3.3V for radio, with compact XDFN package for module integration.
- Q: What are the output voltages of the NCP152MX330180TCG?
- A: It provides dual outputs: 1.8V and 3.3V.
- Q: What is the maximum output current per channel?
- A: Each channel can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What are the dropout voltages?
- A: Dropout is 0.4V at 150mA for the 1.8V rail and 0.22V at 150mA for the 3.3V rail.
- Q: What is the quiescent current?
- A: The quiescent current is 100 µA.
- Q: What package is available?
- A: It comes in a 6-XDFN (1.2x1.2) package.
