onsemi NCP1568B06ADBR2G
Regular price
Dhs. 355,874.90
Regular price
Dhs. 374,605.16
Sale price
Dhs. 355,874.90
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

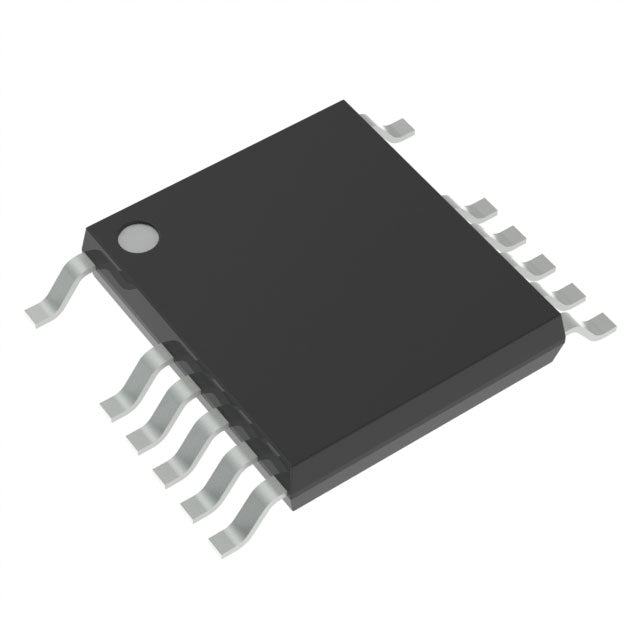

onsemi NCP1568B06ADBR2G Flyback Switching Controller
The NCP1568B06ADBR2G from onsemi is a high-performance isolated flyback AC/DC offline switching controller designed for precision power conversion applications in aerospace, automotive, industrial, and telecommunications systems.
Key Features
- Isolated Flyback Topology with internal switches for compact design
- Wide Supply Range: 10V to 27V operation with 15.2V startup voltage
- High-Frequency Switching: 100kHz to 1MHz for efficient power conversion
- 79% Maximum Duty Cycle for optimized performance
- Comprehensive Protection: Current limiting, over power, over temperature, over voltage, and short circuit protection
- Advanced Control: Frequency control and soft start features
- Extended Temperature Range: -40°C to 125°C (TJ) for harsh environments
- Surface Mount 16-TSSOP Package for automated assembly
Applications
Ideal for AC/DC power supplies, industrial control systems, telecommunications equipment, and automotive electronics requiring reliable isolated power conversion with robust fault protection.
Quality & Authenticity
Sourced directly from authorized distributors with full manufacturer documentation, traceability, and long lifecycle support. RoHS compliant.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.2 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V |
| Duty Cycle | 79% |
| Frequency - Switching | 100kHz ~ 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width), 12 Leads |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
NCP1568B06ADBR2G.pdf
×
