onsemi NCP163AFCS260T2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.66 | $0.66 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.62 | $15.50 |
| 50+ | $0.59 | $29.50 |
| 100+ | $0.52 | $52.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

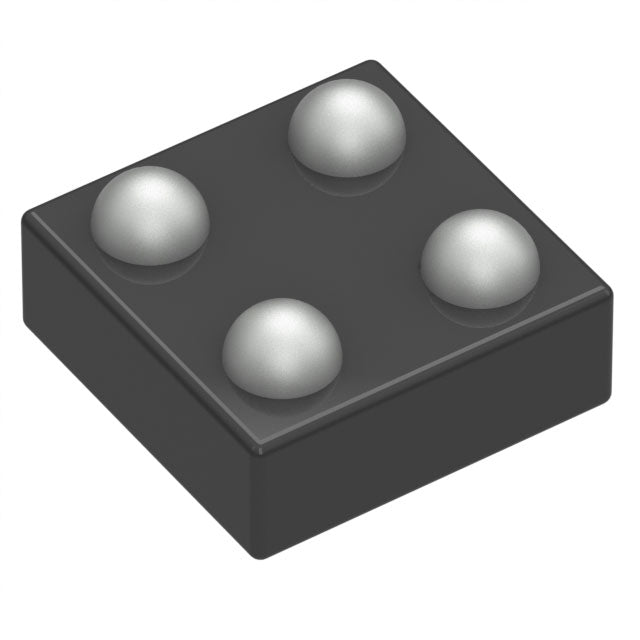

| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.64x0.64) |
| ROHS |  |
The NCP163AFCS260T2G from onsemi is a fixed 2.6V low dropout linear regulator delivering 250mA. It features an ultra-low quiescent current of 20µA and exceptional PSRR of 91dB at 100Hz. Housed in a miniature 4-WLCSP (0.64x0.64mm) package, it is designed for the most space-constrained, battery-powered applications requiring clean, stable power.
- Ultra-Low Quiescent Current (20µA): Industry-leading efficiency for battery-powered devices.
- Exceptional PSRR (91dB @ 100Hz): Superior noise rejection for sensitive analog circuits.
- World-Class Miniature Package: 4-WLCSP at just 0.64x0.64mm saves maximum board space.
- Wide PSRR Bandwidth: Maintains 60dB at 100kHz, filtering high-frequency noise too.
Ultra-Compact Wearables
The 4-WLCSP package (0.64x0.64mm) is among the smallest available, perfect for smart rings or tiny earbuds.
Low-Power IoT Nodes
With only 20µA quiescent current, it's ideal for battery-powered sensors that sleep most of the time.
Camera Modules
The 2.6V output suits image sensors, while high PSRR (91dB at 100Hz) prevents noise artifacts.
Portable Medical Monitors
Stable 2.6V rail for glucose monitors or pulse oximeters, with minimal power draw.
RFID Tags
Ultra-low power consumption and tiny footprint make it suitable for passive or semi-passive RFID devices.
Hearing Aids
The small size and low quiescent current are critical for hearing aid electronics, providing clean 2.6V power.
- Q: What is the output voltage?
- A: The fixed output voltage is 2.6V.
- Q: What is the maximum output current?
- A: It can supply up to 250mA.
- Q: What is the input voltage range?
- A: The maximum input voltage is 2.6V above the output (5.2V).
- Q: What is the quiescent current?
- A: Quiescent current is extremely low at 20µA.
- Q: What is the PSRR?
- A: PSRR is 91dB at 100Hz and 60dB at 100kHz.
- Q: What package is available?
- A: It comes in a 4-WLCSP (0.64x0.64mm) package.
