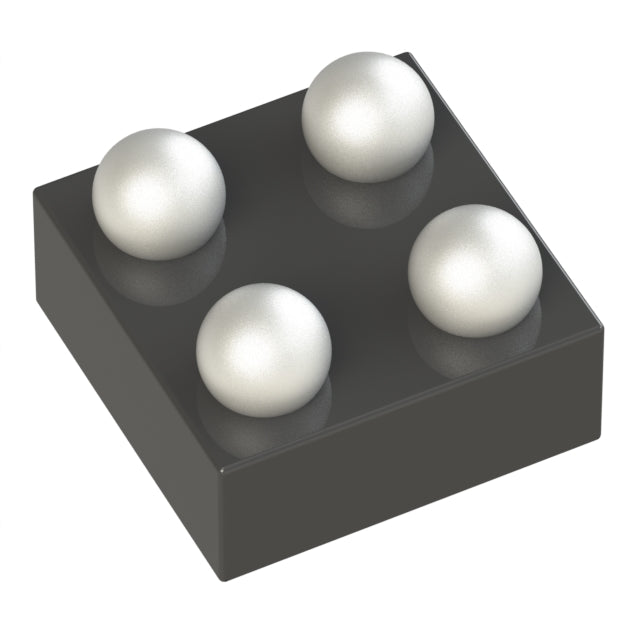

onsemi NCP163AFCT270T2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 μA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.64x0.64) |
| ROHS |  |
The NCP163 from onsemi is an ultra-compact LDO linear regulator offering a fixed 2.7V output. It delivers up to 250mA with a low quiescent current of 20 μA. The device features excellent PSRR of 91dB at 100Hz, making it ideal for noise-sensitive applications. Housed in a 4-WLCSP package measuring just 0.64x0.64mm, it is designed for space-constrained portable electronics.
- Exceptional Noise Rejection: 91dB PSRR at 100Hz ensures clean power for sensitive analog and RF circuits, improving performance.
- Ultra-Compact Size: The 4-WLCSP (0.64x0.64) package is among the smallest available, ideal for miniaturized devices.
- Low Power Operation: 20 μA quiescent current extends battery life in always-on wearable and IoT applications.
- Stable Output: Fixed 2.7V output with 250mA capability provides a reliable power source for various low-voltage ICs.
Smartphone Camera Modules
The ultra-small 4-WLCSP package and 250mA output are ideal for powering image sensors in smartphone cameras, providing a clean 2.7V rail with high PSRR to prevent noise artifacts.
Wearable Fitness Trackers
The compact size and low quiescent current make it perfect for fitness bands, powering the sensor hub and Bluetooth LE module from a small battery.
Hearing Aids and Medical Implants
The tiny footprint and low power consumption are critical for hearing aids, where space is at a premium and battery life is essential.
Portable Audio Players
With 91dB PSRR at 100Hz, the NCP163 effectively filters power supply noise, ensuring high-fidelity audio output in portable music players.
Wireless Earbuds
The 4-WLCSP package fits perfectly in the compact PCB of wireless earbuds, providing a stable 2.7V supply for the audio codec and touch controller.
IoT Sensor Nodes
In space-constrained IoT nodes, the NCP163 provides a regulated 2.7V rail for sensors and microcontrollers, with low quiescent current for extended battery life.
- Q: What is the output voltage of the NCP163AFCT270T2G?
- A: This LDO provides a fixed output voltage of 2.7V.
- Q: What is the maximum output current?
- A: The NCP163 can deliver up to 250mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.7V up to the maximum rating; refer to the datasheet for the full operating range.
- Q: What is the quiescent current?
- A: The quiescent current is 20 μA, which is low for battery-powered applications.
- Q: What is the PSRR performance?
- A: The PSRR is excellent at 91dB at 100Hz, decreasing to 60dB at 100kHz, providing excellent noise rejection.
- Q: What package is this device available in?
- A: It comes in an ultra-compact 4-WLCSP (0.64x0.64) package.
