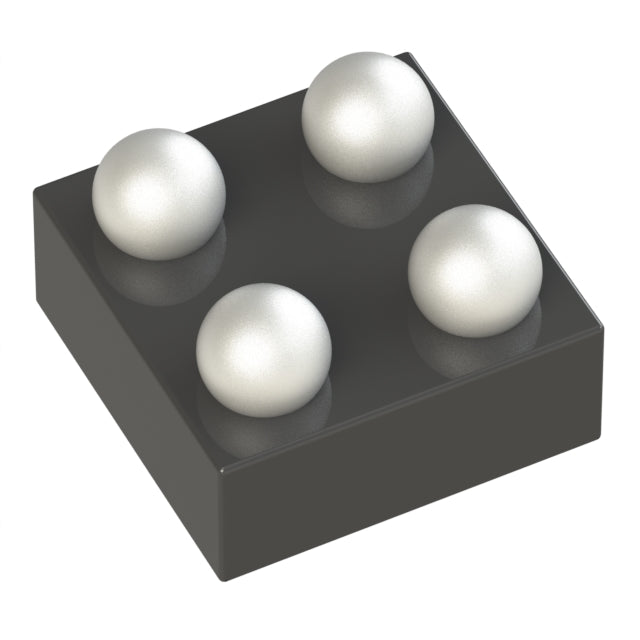

onsemi NCP163AFCT285T2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.60 | $0.60 |
| 15+ | $0.58 | $8.70 |
| 25+ | $0.57 | $14.25 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.64x0.64) |
| ROHS |  |
The NCP163AFCT285T2G from onsemi is a fixed 2.85V ultra-low quiescent current LDO, delivering up to 250mA. Its 20 µA quiescent current and exceptional PSRR (91dB at 100Hz, 60dB at 100kHz) make it ideal for noise-sensitive, battery-powered applications. The 4-WLCSP package measures just 0.64x0.64mm, enabling ultra-compact designs.
- Ultra-Low Power: 20 µA quiescent current dramatically extends battery life in portable devices.
- Superior Noise Rejection: 91dB PSRR at 100Hz and 60dB at 100kHz ensures clean power for sensitive RF and analog circuits.
- Ultra-Compact: 4-WLCSP package (0.64x0.64mm) is ideal for space-constrained designs.
- High Current Density: 250mA output in a tiny footprint supports power-hungry modules.
High-Performance Smartphones
The 2.85V output and 250mA capability make it ideal for powering camera modules, image sensors, and RF transceivers in mobile devices, where the 91dB PSRR at 100Hz ensures clean power.
Wearable Health Monitors
With only 20 µA quiescent current, this LDO extends battery life in fitness trackers and medical patches that require a stable 2.85V rail for sensors and MCUs.
Noise-Critical RF Front-Ends
The high PSRR across a wide frequency range (91dB at 100Hz to 60dB at 100kHz) suppresses interference, making it perfect for powering VCOs, PLLs, and low-noise amplifiers.
Compact IoT Sensors
The ultra-small 4-WLCSP package (0.64x0.64mm) fits into space-constrained IoT nodes, providing a regulated 2.85V supply for wireless communication modules.
Portable Audio Devices
For high-fidelity audio codecs and DACs requiring 2.85V, this regulator delivers low-noise power, preserving audio signal integrity.
Battery-Powered Cameras
Action cameras and security cameras benefit from the low quiescent current and stable output, ensuring consistent performance during long recording sessions.
- Q: What is the output voltage of the NCP163AFCT285T2G?
- A: This LDO provides a fixed output voltage of 2.85V.
- Q: What is the maximum output current?
- A: It can deliver up to 250mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please consult the official datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 20 µA, ideal for battery-powered applications.
- Q: What is the PSRR performance?
- A: PSRR is excellent: 91dB at 100Hz and 60dB at 100kHz, providing superior noise filtering.
- Q: What package is available?
- A: It comes in a 4-WLCSP (0.64x0.64) wafer-level chip-scale package.
