onsemi NCP163AFCT300T2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.52 | $0.52 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.155V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 μA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

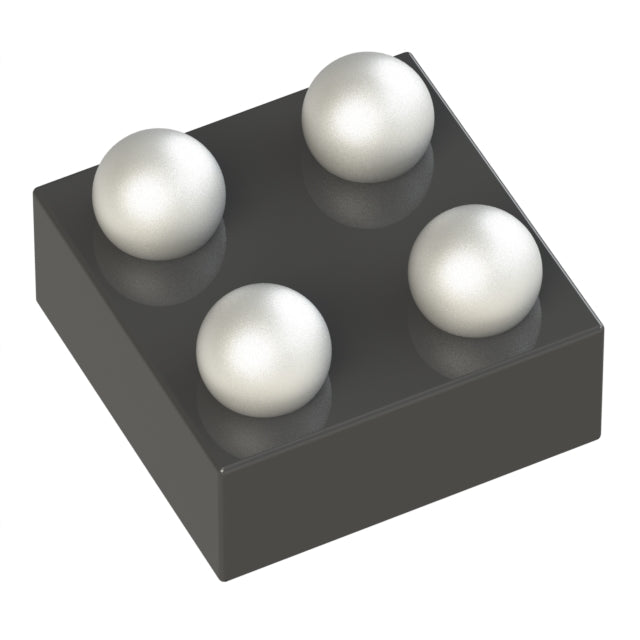

| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.64x0.64) |
| ROHS |  |
The NCP163AFCT300T2G from onsemi is a 3.0V fixed-output LDO rated for 250mA. Its 0.155V dropout at full load and 20µA quiescent current deliver high efficiency. The 4-WLCSP package (0.64x0.64mm) is among the smallest available, ideal for advanced portable electronics.
- Exceptional Noise Rejection: 91dB PSRR at 100Hz ensures clean power for sensitive analog circuits.
- Ultra-Low Dropout: 0.155V at 250mA maximizes battery utilization.
- Minimal Footprint: 4-WLCSP package saves PCB area in compact designs.
- High Efficiency: 20µA quiescent current reduces idle power consumption.
Smartphones & Tablets
The 4-WLCSP package and 0.155V dropout at 250mA make it perfect for powering RF transceivers and camera modules in mobile devices.
Wireless Earbuds
Ultra-small footprint fits inside charging case circuitry, providing clean 3.0V to Bluetooth SoCs with 91dB PSRR at 100Hz.
Portable Gaming Consoles
High PSRR (91dB~60dB from 100Hz to 100kHz) suppresses noise from switching regulators, ensuring stable performance for graphics processors.
Medical Implantables
Low dropout and small size enable use in pacemakers and neurostimulators where space and power efficiency are critical.
IoT Modules
250mA capacity supports Wi-Fi/Bluetooth modules, while 20µA quiescent current preserves battery in sleep modes.
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: Maximum output current?
- A: 250mA.
- Q: Input voltage range?
- A: 3V (typical input).
- Q: Dropout voltage?
- A: 0.155V at 250mA, very low.
- Q: Quiescent current?
- A: 20µA.
- Q: Package?
- A: 4-WLCSP (0.64x0.64mm), ultra-small.
