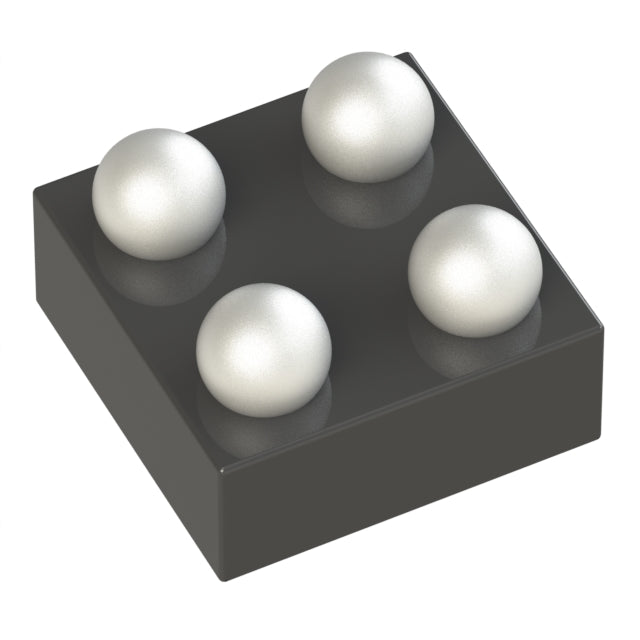

onsemi NCP163AMX120TBG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.62 | $0.62 |
| 15+ | $0.60 | $9.00 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.55 | $27.50 |
| 100+ | $0.49 | $49.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1x1) |
| ROHS |  |
The NCP163AMX120TBG from onsemi is a low-dropout linear regulator providing a fixed 1.2V output at up to 250mA. With an ultra-low quiescent current of 20µA and excellent PSRR of 91dB at 100Hz, it is designed for battery-powered and noise-sensitive portable electronics. The 4-XDFN package measures just 1x1mm.
- Ultra-low quiescent current (20µA) maximizes battery life in wearables.
- Excellent PSRR (91dB at 100Hz) for clean power in RF applications.
- Ultra-small 1x1mm XDFN package saves board space.
- 250mA output current supports a wide range of low-power loads.
Wearable Devices
Ultra-small 1x1mm XDFN package and 20µA quiescent current make it perfect for smartwatches and fitness bands needing 1.2V rail.
IoT Modules
High PSRR (91dB at 100Hz) ensures clean power for RF transceivers in IoT nodes.
Hearing Aids
Low quiescent current extends battery life in compact audio devices requiring stable 1.2V.
Portable Instruments
250mA output supports low-power sensors and microcontrollers in handheld meters.
Wireless Earbuds
Small footprint and low dropout enable efficient power management in tiny form factors.
- Q: What is the output voltage?
- A: Fixed 1.2V output.
- Q: What is the maximum current?
- A: 250mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; check datasheet.
- Q: What is the quiescent current?
- A: Very low 20µA.
- Q: What is the PSRR performance?
- A: 91dB at 100Hz, 60dB at 100kHz.
- Q: What package is used?
- A: 4-XDFN (1x1mm) ultra-small package.
