onsemi NCP163AMX130TBG
Regular price
$0.62
Regular price
$0.65
Sale price
$0.62
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.62 | $0.62 |
| 15+ | $0.60 | $9.00 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.55 | $27.50 |
| 100+ | $0.49 | $49.00 |
| N+ | $0.10 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

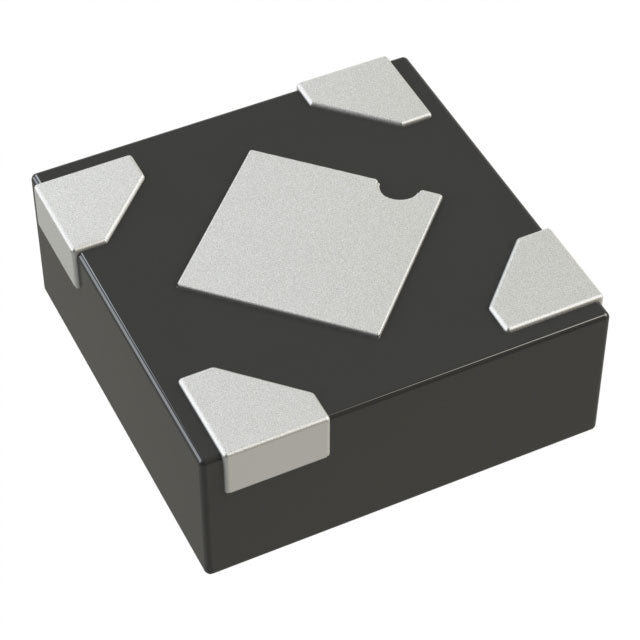

| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1x1) |
| ROHS |  |
The NCP163AMX130TBG from onsemi provides a fixed 1.3V output at 250mA. Its 20 µA quiescent current is among the lowest, and 91dB PSRR at 100Hz ensures clean power. The 1x1mm XDFN package is perfect for miniaturized electronics.
- Lowest Quiescent Current: 20 µA for extreme battery life.
- Broadband PSRR: 91dB at 100Hz, 60dB at 100kHz.
- Ultra-Compact: 1x1mm XDFN package.
- Low-Voltage Output: 1.3V for modern digital ICs.
Low-Voltage Digital Cores
1.3V output powers modern MCUs and FPGAs at 250mA.
Energy-Efficient IoT Devices
20 µA quiescent current is ideal for always-on sensors.
High-Frequency Noise Filtering
60dB PSRR at 100kHz suppresses switching regulator noise.
Battery-Powered Remote Controls
Ultra-low power extends battery life in consumer remotes.
Portable Medical Monitors
Stable 1.3V for glucose meters and pulse oximeters.
Smart Agriculture Sensors
Compact package and low power suit soil monitoring nodes.
- Q: What is the output voltage?
- A: Fixed 1.3V output.
- Q: What is the maximum current?
- A: 250mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; refer to datasheet.
- Q: What is the quiescent current?
- A: 20 µA.
- Q: What is the PSRR?
- A: 91dB at 100Hz and 60dB at 100kHz.
- Q: What package is used?
- A: 4-XDFN (1x1mm).
Base Product Number ：
NCP163AMX130T
NCP163AMX130TBG.pdf
- Q: What is the output voltage?
- A: Fixed 1.3V output.
- Q: What is the maximum current?
- A: 250mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; refer to datasheet.
- Q: What is the quiescent current?
- A: 20 µA.
- Q: What is the PSRR?
- A: 91dB at 100Hz and 60dB at 100kHz.
- Q: What package is used?
- A: 4-XDFN (1x1mm).
×
