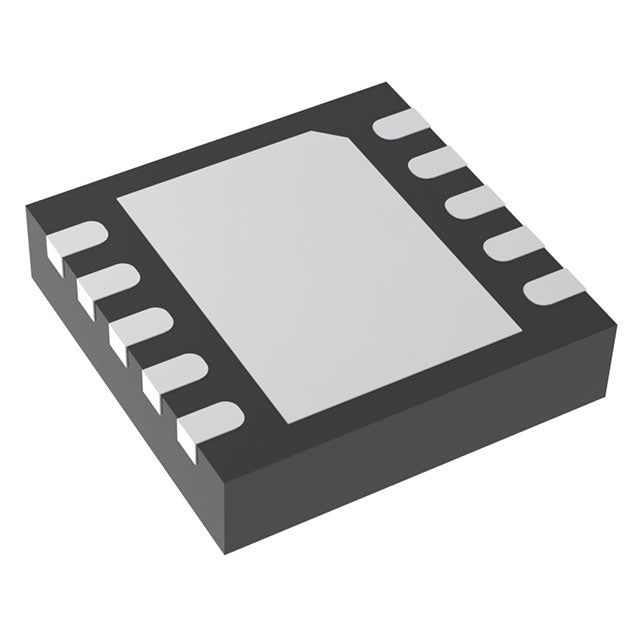

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
onsemi
NCP5109BMNTWG
NCP5109BMNTWG
Regular price
Dhs. 1.57
Regular price
Dhs. 1.65
Sale price
Dhs. 1.57
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.57 AED | Dhs. 1.57 AED |
| 15+ | Dhs. 1.52 AED | Dhs. 22.80 AED |
| 25+ | Dhs. 1.49 AED | Dhs. 37.25 AED |
| 50+ | Dhs. 1.40 AED | Dhs. 70.00 AED |
| 100+ | Dhs. 1.24 AED | Dhs. 124.00 AED |
| N+ | Dhs. 0.25 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 200 V |
| Rise / Fall Time (Typ) | 85ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
Datasheets:
NCP5109BMNTWG
.pdf
×
