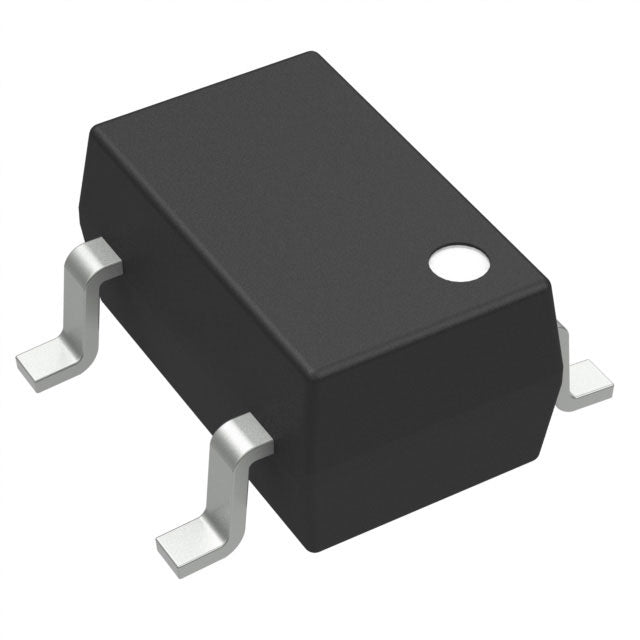

onsemi NCP551SN15T1G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.91 | $0.91 |
| 15+ | $0.88 | $13.20 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.82 | $41.00 |
| 100+ | $0.72 | $72.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 10mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 8 µA |
| Current - Supply (Max) | 8 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| ROHS |  |
The onsemi NCP551SN15T1G is a fixed 1.5V low dropout linear regulator delivering up to 150mA. Its ultra-low 8 µA quiescent current and 0.22V dropout at 10mA make it ideal for battery-powered and energy-sensitive applications. Housed in a compact 5-TSOP package, it provides a stable, noise-free output for portable electronics, wearables, and IoT devices.
- Extended Battery Life: Ultra-low 8 µA quiescent current minimizes standby power draw, ideal for always-on devices.
- Stable Low-Voltage Output: Fixed 1.5V output with 0.22V dropout at 10mA ensures reliable operation near end-of-battery voltage.
- Compact Footprint: 5-TSOP package saves PCB space for space-constrained wearable and portable designs.
- Sufficient Current Capacity: 150mA output supports MCUs, sensors, and low-power RF modules.
Battery-Powered IoT Sensors
The ultra-low 8 µA quiescent current extends battery life in always-on sensor nodes, while the 150mA output handles periodic wireless transmissions.
Portable Medical Devices
The 1.5V fixed output and low dropout of 0.22V @ 10mA ensure stable operation from a single Li-ion cell or two alkaline batteries, critical for glucose monitors and hearing aids.
Wearable Electronics
Compact 5-TSOP package and low dropout allow direct regulation from a 1.8V rail, ideal for smartwatches and fitness trackers requiring minimal board space.
Microcontroller Power Supplies
Provides clean 1.5V rail for low-power MCUs in industrial control, with 150mA capacity sufficient for core logic and peripheral I/O.
Energy Harvesting Systems
With only 8 µA quiescent draw, it maximizes efficiency in solar or thermal harvesting setups where every microamp of overhead reduces harvested energy available to the load.
- Q: What is the output voltage of the NCP551SN15T1G?
- A: The fixed output voltage is 1.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly provided; refer to the datasheet for absolute maximum ratings.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.22V at 10mA load.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 8 µA.
- Q: What package is available?
- A: It comes in a 5-TSOP package.
