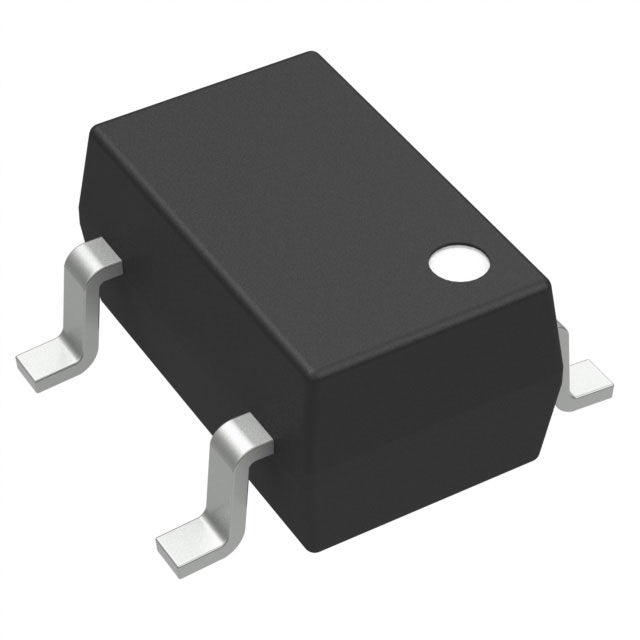

onsemi NCP551SN18T1G
Regular price
$0.91
Regular price
$0.96
Sale price
$0.91
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.91 | $0.91 |
| 15+ | $0.88 | $13.20 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.82 | $41.00 |
| 100+ | $0.72 | $72.00 |
| N+ | $0.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 10mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 8 µA |
| Current - Supply (Max) | 8 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| ROHS |  |
The NCP551SN18T1G from onsemi is a fixed 1.8V LDO regulator offering 150mA output. With 8µA quiescent current and 0.22V dropout at 10mA, it excels in low-power and battery-operated designs. The 5-TSOP package ensures a minimal footprint.
- Energy Efficient: 8µA quiescent current reduces standby power consumption.
- Low Dropout: 0.22V at 10mA allows operation from low input voltages.
- Compact Design: 5-TSOP package is ideal for miniaturized electronics.
- Precise 1.8V Output: Fixed voltage eliminates external resistor networks.
Digital Core Supplies
Provides 1.8V rail for DSPs and FPGAs, ensuring stable operation at low voltages.
Bluetooth Low Energy Modules
Ideal for BLE SoCs requiring 1.8V, with low quiescent current for beacon applications.
Memory Power
Powers DDR3L/DDR4 VTT rails with minimal dropout and noise.
Portable Gaming Devices
Compact package and low power draw suit handheld consoles.
Smart Home Sensors
Reliable 1.8V for temperature/humidity sensors, extending battery life.
Automotive Telematics
Wide input range handles vehicle voltage spikes while maintaining 1.8V output.
- Q: What is the output voltage of the NCP551SN18T1G?
- A: The fixed output voltage is 1.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.8V up to 12V (absolute max).
- Q: What is the dropout voltage?
- A: Dropout is typically 0.22V at 10mA load.
- Q: What is the quiescent current?
- A: Ultra-low quiescent current of 8µA.
- Q: What package is available?
- A: Available in a 5-pin TSOP package.
Base Product Number ：
NCP551SN18
NCP551SN18T1G.pdf
