onsemi NCV1060BD060R2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry

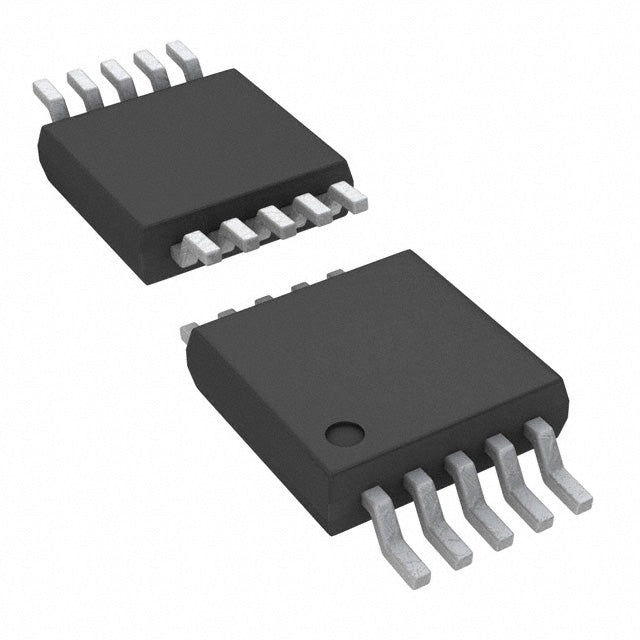

onsemi NCV1060BD060R2G Automotive AC/DC Offline Switching Controller
The NCV1060BD060R2G is a high-performance automotive-grade AC/DC offline switching controller from onsemi, designed for demanding power conversion applications in automotive, industrial, and telecommunications systems. This AEC-Q100 qualified device delivers reliable performance across extreme temperature ranges (-40°C to 150°C TJ) with comprehensive fault protection.
Key Features & Benefits
- Automotive-Grade Reliability: AEC-Q100 qualified for mission-critical automotive applications
- Multi-Topology Support: Flexible design supports Boost, Buck, Flyback, and Forward converter topologies
- High Voltage Capability: 670V breakdown voltage for robust operation
- Comprehensive Protection: Integrated current limiting, overload, overpower, overvoltage, and short circuit protection
- Efficient Operation: 60kHz switching frequency with soft start control for reduced stress
- Wide Operating Range: 8.4V to 9.5V supply voltage range
- Compact Surface Mount Package: 10-SOIC package for space-efficient designs
Applications
Ideal for automotive power supplies, industrial control systems, telecommunications infrastructure, and any application requiring reliable isolated or non-isolated power conversion with stringent quality requirements.
Why Choose Authorized Stock?
Our NCV1060BD060R2G components are sourced directly from authorized distributors, ensuring 100% authenticity, full manufacturer traceability, and compliance with onsemi's quality standards. Each unit comes with complete documentation and is backed by long lifecycle support commitments.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Either |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 670V |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 9.5V |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Power (Watts) | 7.2 W |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SOIC |
| ROHS |  |
NCV1060BD060R2G.pdf
