onsemi NCV317LBZRAG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Marketplace | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| PSRR | 80dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Through Hole |

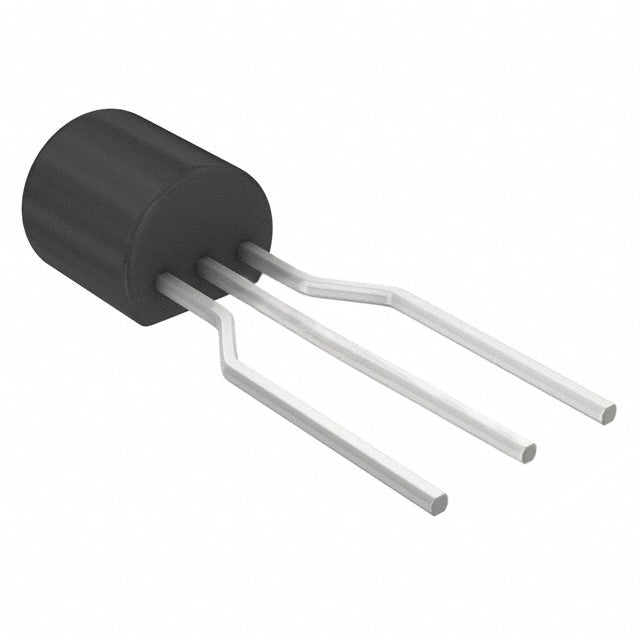

| Package / Case | TO-226-3, TO-92-3 Long Body, Formed Leads |
| Supplier Device Package | TO-92 (TO-226) |
| ROHS |  |
The NCV317LBZRAG from onsemi is a versatile adjustable linear regulator delivering up to 100mA with an output range to 37V. Its low quiescent current and excellent 80dB ripple rejection make it a reliable choice for noise-sensitive applications. Housed in a compact TO-92 package, this LDO is easy to integrate into a wide variety of designs.
- Wide Adjustable Output: Supports up to 37V, offering design flexibility for various voltage requirements.
- Excellent Ripple Rejection: 80dB PSRR at 120Hz ensures clean, stable output for sensitive analog circuits.
- Low Quiescent Current: 10mA quiescent current helps improve efficiency in battery-powered designs.
- Compact TO-92 Package: Simple through-hole mounting simplifies prototyping and production.
High-Voltage Adjustable Power Supplies
With an output range up to 37V, the NCV317LBZRAG is ideal for bench power supplies and variable voltage sources where precise adjustment is required.
Battery-Powered Equipment
The low 100mA current draw and 10mA quiescent current make it suitable for battery-operated devices needing a stable, adjustable rail.
Industrial Control Systems
Its 80dB PSRR at 120Hz effectively filters mains ripple, ensuring clean power for analog sensors and microcontrollers in industrial environments.
Audio Preamplifiers
The high PSRR reduces hum and noise, making this LDO a good choice for powering low-current audio stages.
Reference Voltage Sources
Use it as a precision adjustable reference for ADC circuits or comparators where a stable, noise-free voltage is critical.
Automotive Sensor Interfaces
The TO-92 package and robust design support automotive sensor conditioning circuits that require a clean, adjustable supply.
- Q: What is the output voltage range of the NCV317LBZRAG?
- A: The NCV317LBZRAG provides an adjustable output voltage up to 37V.
- Q: What is the maximum output current?
- A: The maximum output current is 100mA.
- Q: What is the input voltage range?
- A: The input voltage range starts from 1.2V.
- Q: What is the quiescent current?
- A: The quiescent current is 10 mA.
- Q: What package is available?
- A: It comes in a TO-92 (TO-226) package.
- Q: What is the PSRR performance?
- A: The PSRR is 80dB at 120Hz.
