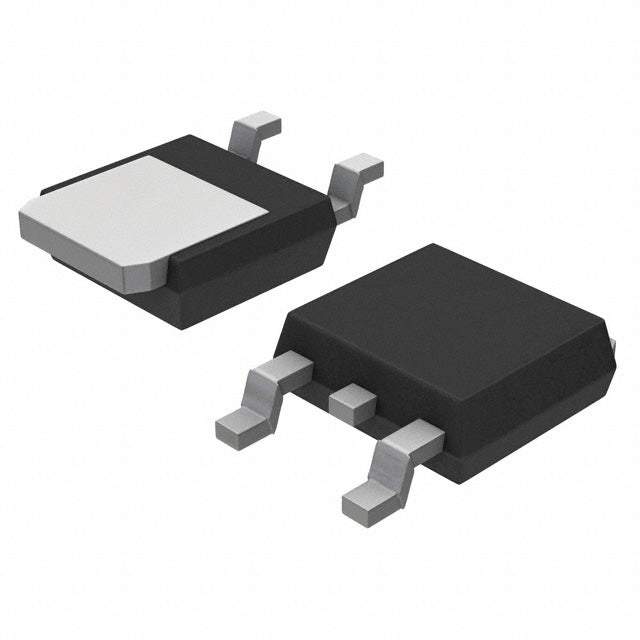

onsemi NCV317MABDTRKG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.03 | $1.03 |
| 15+ | $0.99 | $14.85 |
| 25+ | $0.97 | $24.25 |
| 50+ | $0.92 | $46.00 |
| 100+ | $0.81 | $81.00 |
| N+ | $0.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| PSRR | 80dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| ROHS |  |
The NCV317MABDTRKG from onsemi is a versatile adjustable LDO regulator supporting up to 500mA and outputs up to 37V. With a minimum input of 1.2V and excellent PSRR of 80dB, it delivers clean, stable power across a wide range of applications. The DPAK package ensures superior thermal performance, making it suitable for demanding automotive and industrial environments.
- Wide Output Range: Adjustable from 1.2V to 37V, covering diverse application needs.
- High Current Capacity: 500mA output supports power-hungry loads like relays and audio amplifiers.
- Excellent Noise Rejection: 80dB PSRR at 120Hz ensures clean output in noisy environments.
- Automotive Qualified: AEC-grade reliability for harsh operating conditions.
High-Voltage Power Supplies
With adjustable output up to 37V, it powers industrial sensors, relays, and analog circuits requiring non-standard voltage rails.
Automotive Infotainment
The 500mA output and wide voltage range support audio amplifiers and display drivers in car infotainment systems, with 80dB PSRR filtering alternator noise.
Bench Power Supplies
Its adjustable nature makes it ideal for DIY and educational bench supplies, providing a stable 1.2V to 37V output for prototyping.
Battery Charging Circuits
The high current capability allows efficient charging of lead-acid and lithium batteries with precise voltage control.
HVAC Control Boards
In heating and cooling systems, it regulates 24V AC-derived DC rails, ensuring reliable operation of microcontrollers and motor drivers.
- Q: What is the output voltage range?
- A: The NCV317MABDTRKG is adjustable with a maximum output of 37V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA of output current.
- Q: What is the input voltage requirement?
- A: The minimum input voltage is 1.2V, allowing operation from low-voltage rails.
- Q: What is the quiescent current?
- A: Quiescent current is 10mA, typical for higher-power adjustable regulators.
- Q: What is the PSRR performance?
- A: PSRR ranges from 80dB to 65dB at 120Hz, depending on output voltage.
- Q: What package is available?
- A: It comes in the DPAK surface-mount package for efficient heat dissipation.
