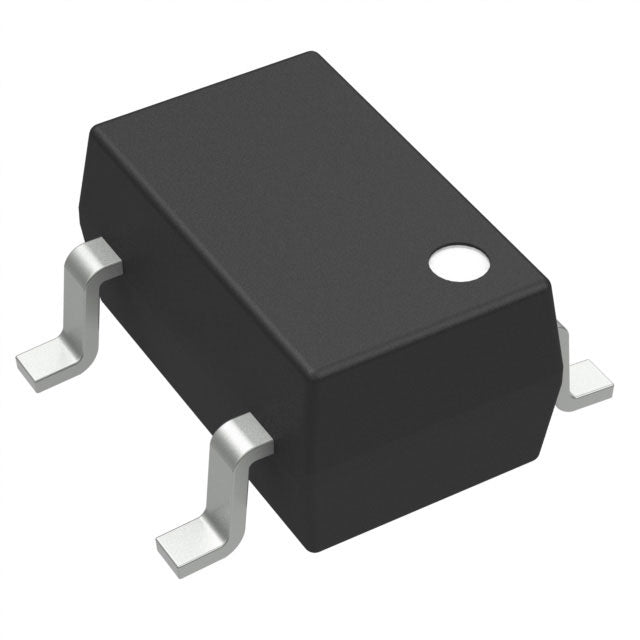

onsemi NCV551SN25T1G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.95 | $0.95 |
| 15+ | $0.92 | $13.80 |
| 25+ | $0.90 | $22.50 |
| 50+ | $0.85 | $42.50 |
| 100+ | $0.75 | $75.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 10mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 8 µA |
| Current - Supply (Max) | 8 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| ROHS |  |
The NCV551SN25T1G is a fixed 2.5V LDO from onsemi, rated for 150mA output. With an ultra-low 8 µA quiescent current and 0.22V dropout at 10mA, it excels in battery-powered and automotive applications. The 5-TSOP package is compact and thermally efficient. Includes short-circuit and thermal protection.
- Ultra-Low Iq: 8 µA extends battery life in standby mode.
- Automotive Reliability: AEC-Q100 qualified for demanding environments.
- Low Dropout: 0.22V at 10mA maximizes efficiency.
- Small Footprint: TSOP-5 package fits tight layouts.
Low-Power Microcontrollers
Provides a stable 2.5V rail for MSP430 or STM32L0 MCUs, with 8µA Iq preserving sleep-mode battery life.
Wireless Transceivers
Supports 2.5V logic for Zigbee/Bluetooth modules, ensuring clean power for RF sensitivity.
Automotive Sensor Interfaces
AEC-Q100 qualified, ideal for 2.5V sensor signal conditioning in engine control units.
Portable Instrumentation
Low dropout of 0.22V at 10mA allows efficient conversion from a 2.8V battery to 2.5V.
Energy Harvesting Systems
Ultra-low quiescent current makes it suitable for solar or vibration-powered devices with micro-watt budgets.
- Q: What is the output voltage?
- A: Fixed 2.5V output.
- Q: What is the maximum current?
- A: 150mA.
- Q: What is the input voltage range?
- A: 2.5V to 12V.
- Q: What is the dropout voltage?
- A: 0.22V at 10mA load.
- Q: What is the quiescent current?
- A: 8 µA.
- Q: What package is it?
- A: 5-TSOP.
