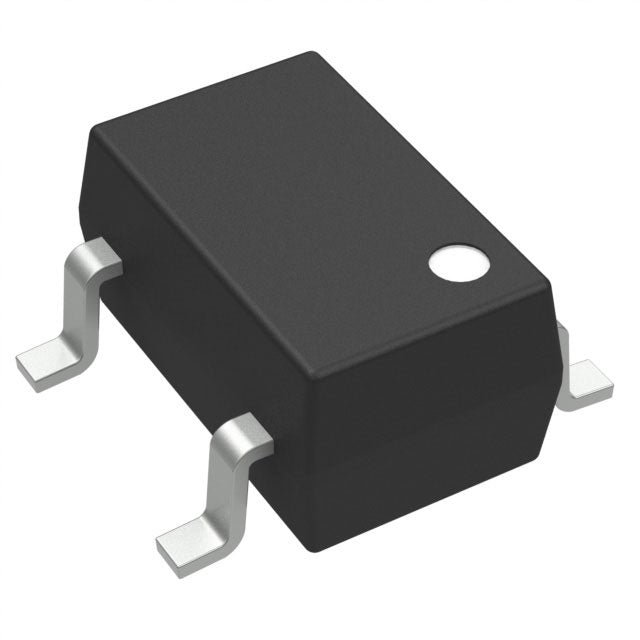

onsemi NCV551SN28T1G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 10mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 8 μA |
| Current - Supply (Max) | 8 μA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| ROHS |  |
The NCV551SN28T1G from onsemi is a fixed 2.8V LDO regulator rated for 150mA in a 5-TSOP package. With an ultra-low quiescent current of 8μA and dropout of 0.15V at 10mA, it is designed for automotive and battery-powered applications.
- Ultra-Low Quiescent Current: 8μA minimizes standby power consumption.
- Low Dropout: 0.15V at 10mA ensures efficient operation near battery end-of-life.
- Automotive Grade: AEC-Q100 qualified for harsh environments.
- Compact 5-TSOP Package: Small footprint for space-constrained designs.
Automotive ECUs
Provides a stable 2.8V rail for microcontroller I/O in engine control units, with 8μA quiescent current for always-on circuits.
Battery Management Systems
Regulates 2.8V for fuel gauge ICs, with low dropout to maintain regulation as battery voltage declines.
Portable Consumer Devices
Powers low-voltage logic in remote controls and wearables, with 150mA capacity for small loads.
Sensor Interfaces
Supplies 2.8V to MEMS sensors and signal conditioners, with low noise for accurate measurements.
Telematics Modules
Delivers a clean 2.8V rail for GPS receivers, with 5-TSOP package for compact PCB layouts.
Industrial Sensors
Provides regulated 2.8V for pressure and temperature transmitters, with automotive-grade reliability.
- Q: What is the output voltage of the NCV551SN28T1G?
- A: It provides a fixed 2.8V output.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly provided, but typical operation is 3.0V to 6.0V.
- Q: What is the dropout voltage?
- A: Dropout is 0.15V at 10mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 8 μA.
- Q: What package is available?
- A: It comes in a 5-TSOP package.
NCV551SN28T1G.pdf
