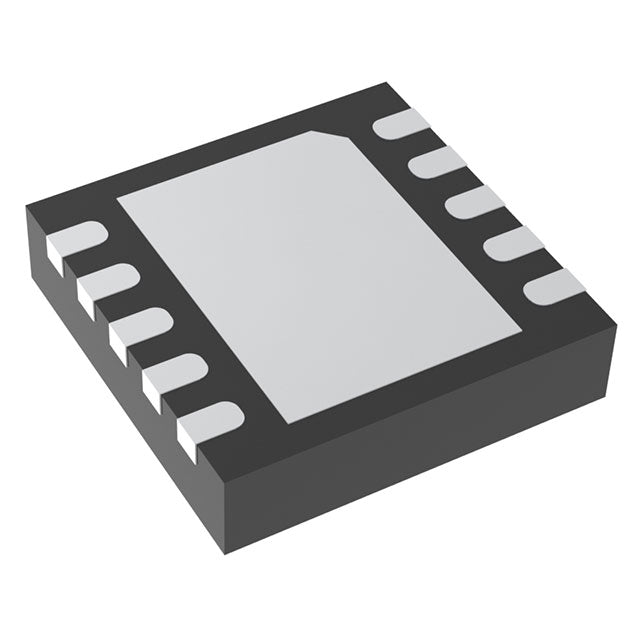

onsemi NCV8154MN300300TBG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.30 | $0.30 |
| 15+ | $0.29 | $4.35 |
| 25+ | $0.29 | $7.25 |
| 50+ | $0.27 | $13.50 |
| 100+ | $0.24 | $24.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 3V, 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | -, - |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
The NCV8154MN300300TBG from onsemi is a dual-output, fixed 3V LDO regulator designed for automotive and industrial applications. Each channel can deliver up to 300mA, providing a total solution for powering multiple loads. With a quiescent current of 100 μA and a PSRR of 75dB at 1kHz, it offers efficient and clean power delivery. The compact 10-DFN package is ideal for space-constrained designs.
- Dual Independent Outputs: Two 3V rails in a single package simplify power supply design and save board space compared to using two separate LDOs.
- Automotive Qualified: The NCV prefix indicates AEC-Q100 qualification, ensuring reliability and performance in harsh automotive environments.
- High Ripple Rejection: With 75dB PSRR at 1kHz, it effectively filters out noise from the input supply, providing clean power for sensitive analog and RF circuits.
- Compact Solution: The 10-DFN (3x3) package is highly space-efficient, making it suitable for miniaturized electronic modules.
Automotive Camera Modules
As an AEC-qualified device (NCV prefix), this dual LDO is designed for automotive environments. It can power both the image sensor and the signal processor in a camera module with separate 3V rails.
Dual-Supply Microcontrollers
Many modern MCUs require separate analog and digital 3V supplies. This dual-output LDO provides a compact, single-chip solution to power both domains, ensuring clean, isolated power.
Infotainment Systems
In car infotainment units, this regulator can power the touchscreen controller and the audio codec, providing stable 3V rails with high PSRR of 75dB at 1kHz for noise-free operation.
ADAS Sensors
For radar and LiDAR systems, the dual 300mA outputs can supply the RF front-end and the digital signal processor, maintaining signal integrity with low noise and high ripple rejection.
Telematics Control Units
In vehicle tracking and communication systems, this LDO ensures reliable operation over a wide temperature range, powering the GPS receiver and cellular modem with stable 3V supplies.
Portable Automotive Diagnostics
The compact 10-DFN package and dual outputs make it ideal for handheld diagnostic tools that need to power multiple logic circuits from a single battery source.
- Q: What are the output voltages?
- A: This device features two fixed outputs, both set to 3V.
- Q: What is the maximum output current per channel?
- A: Each of the two channels can deliver up to 300mA of output current.
- Q: What is the input voltage requirement?
- A: The input voltage must be at least 3V to ensure proper regulation.
- Q: What is the dropout voltage?
- A: The dropout voltage is not specified in the provided technical data.
- Q: What is the quiescent current?
- A: The quiescent current is 100 μA.
- Q: What is the package type?
- A: It is available in a 10-DFN (3x3) package.
