onsemi NCV8160BMX330TBG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.64 | $0.64 |
| 15+ | $0.15 | $2.25 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.14 | $7.00 |
| 100+ | $0.12 | $12.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.145V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 23 µA |
| Current - Supply (Max) | - |
| PSRR | 91dB ~ 48dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

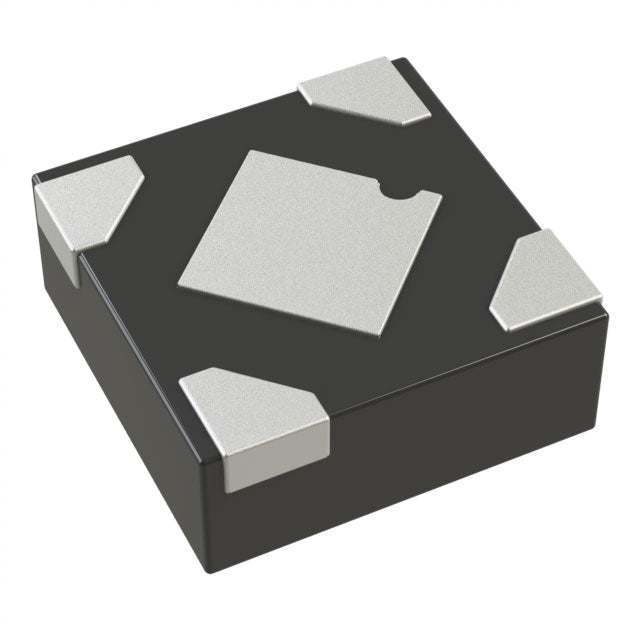

| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1x1) |
| ROHS |  |
The NCV8160BMX330TBG from onsemi is a high-performance 3.3V fixed-output LDO linear regulator capable of delivering 250mA. Its ultra-low 23µA quiescent current and excellent 91dB PSRR at 100Hz make it ideal for battery-powered and noise-sensitive applications. The compact 4-XDFN (1x1mm) package saves valuable board space, while the 145mV dropout at full load ensures efficient operation. This automotive-qualified regulator is a reliable choice for portable, industrial, and automotive power management.
- Extended Battery Life: Ultra-low 23µA quiescent current minimizes standby power draw in portable devices.
- Clean Output Power: High PSRR (91dB at 100Hz) effectively rejects input noise, ideal for precision analog circuits.
- Space-Saving Design: The 1x1mm XDFN package is among the smallest available, perfect for compact PCBs.
- Automotive Reliability: AEC-Q100 qualified for demanding automotive environments.
Battery-Powered IoT Sensors
The ultra-low 23µA quiescent current and 250mA output make it perfect for always-on IoT sensor nodes, extending battery life significantly.
Portable Medical Devices
High PSRR of 91dB at 100Hz ensures clean, stable power for sensitive analog front-ends in glucose monitors and wearable health trackers.
Wireless Communication Modules
The 3.3V rail with 145mV dropout at full load maintains regulation during RF transmission bursts, preventing brownouts in BLE and Zigbee modules.
Noise-Sensitive Audio Circuits
Excellent PSRR across 100Hz-100kHz (91dB to 48dB) filters supply noise, preserving audio signal integrity in portable DACs and headphone amps.
Automotive ECU Reference Rails
As an AEC-Q100 qualified device, it provides a stable 3.3V reference for microcontrollers and CAN transceivers in automotive body control modules.
Wearable Fitness Trackers
The tiny 1x1mm XDFN package fits space-constrained PCBs while delivering clean power to accelerometers and heart-rate sensors.
- Q: What is the output voltage of the NCV8160BMX330TBG?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 250mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 145mV at 250mA load.
- Q: What is the quiescent current?
- A: The quiescent current is only 23µA, ideal for battery-powered applications.
- Q: What package is available?
- A: It comes in a compact 4-XDFN (1x1mm) package.
