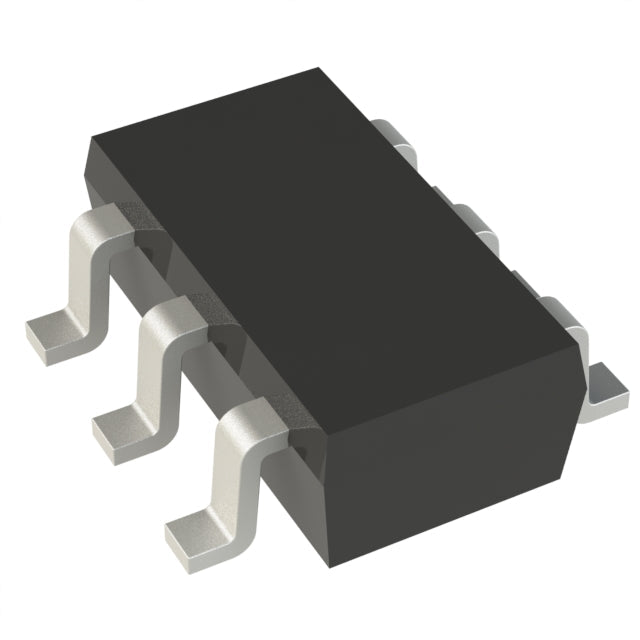

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NEX80601DAZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.97 AED | Dhs. 0.97 AED |
| 15+ | Dhs. 0.93 AED | Dhs. 13.95 AED |
| 25+ | Dhs. 0.91 AED | Dhs. 22.75 AED |
| 50+ | Dhs. 0.86 AED | Dhs. 43.00 AED |
| 100+ | Dhs. 0.76 AED | Dhs. 76.00 AED |
| N+ | Dhs. 0.15 AED | Price Inquiry |
Couldn't load pickup availability
NEX80601DAZ - Flyback Secondary Side Synchronous Rectification Controller IC
The NEX80601DAZ from Nexperia USA Inc. is a high-performance isolated flyback secondary-side synchronous rectification (SR) controller designed for AC-DC power conversion applications up to 65W. This advanced controller IC delivers exceptional efficiency and reliability for industrial, telecom, automotive, and medical power supply designs.
Key Features & Benefits
- High Efficiency: Secondary-side synchronous rectification topology maximizes power conversion efficiency
- Wide Input Range: 10V to 83V supply voltage with 17V start-up voltage
- Robust Protection: Comprehensive fault protection including current limiting, overload, overpower, over-temperature, over-voltage, and short circuit protection
- Compact Design: Space-saving SOT-23-6 Thin (TSOT-23-6) surface mount package
- Extended Temperature Range: -40°C to 125°C (TJ) for demanding environments
- Soft Start Control: Reduces inrush current and improves system reliability
Applications
- AC-DC power adapters and chargers
- Industrial power supplies
- Telecom and networking equipment
- Medical device power systems
- Automotive auxiliary power
- Consumer electronics
Quality & Compliance
This component is RoHS compliant, meeting environmental and safety standards for global distribution. Supplied in professional Tape & Reel packaging for automated assembly processes.
Design Support
Full technical documentation, datasheets, and reference designs are available to support your design-in process. Our engineering team provides comprehensive technical support for aerospace, automotive, industrial, medical, and telecom applications.
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | NEX806 |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 83V |
| Duty Cycle | - |
| Frequency - Switching | 130kHz |
| Power (Watts) | 65 W |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSSOP |
| ROHS |  |
NEX80601DAZ.pdf
