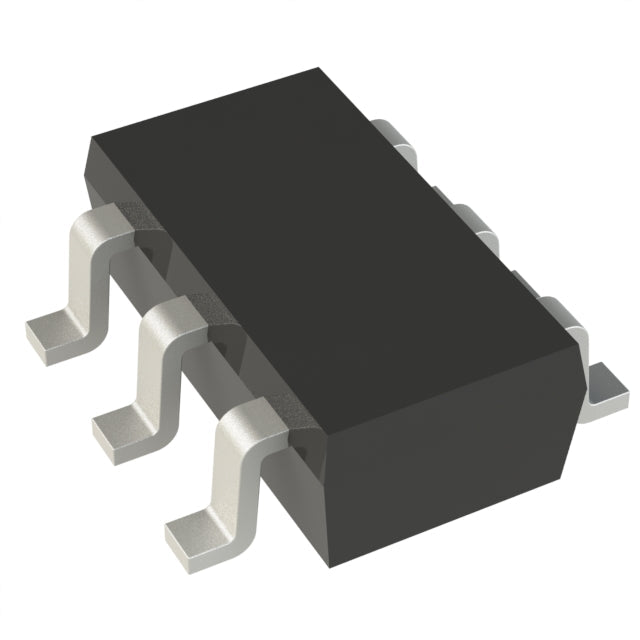

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NEX80602DAZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.97 AED | Dhs. 0.97 AED |
| 15+ | Dhs. 0.93 AED | Dhs. 13.95 AED |
| 25+ | Dhs. 0.91 AED | Dhs. 22.75 AED |
| 50+ | Dhs. 0.86 AED | Dhs. 43.00 AED |
| 100+ | Dhs. 0.76 AED | Dhs. 76.00 AED |
| N+ | Dhs. 0.15 AED | Price Inquiry |
Couldn't load pickup availability
Nexperia NEX80602DAZ Flyback Controller IC
The NEX80602DAZ from Nexperia is a high-performance secondary-side synchronous rectification (SR) flyback controller designed for isolated AC-DC and DC-DC power conversion applications up to 65W. This advanced power management IC features a wide 10V to 83V supply voltage range, 170kHz switching frequency, and comprehensive protection features including current limiting, over-load, over-power, over-temperature, over-voltage, and short circuit protection.
Key Features & Benefits
- High Efficiency Design: Secondary-side SR topology maximizes power conversion efficiency
- Wide Input Range: 10V to 83V supply voltage accommodates diverse applications
- Comprehensive Protection: Multiple fault protection modes ensure reliable, safe operation
- Compact Surface Mount: Space-saving 6-TSSOP package ideal for high-density designs
- Industrial Temperature Range: -40°C to 125°C (TJ) operation for demanding environments
- RoHS Compliant: Meets environmental standards for global distribution
Applications
Ideal for power supplies in industrial automation, telecom infrastructure, medical equipment, automotive electronics, and consumer devices requiring isolated, regulated power conversion with high reliability and efficiency.
Documentation: Full datasheet and technical resources available for design-in support.
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | NEX806 |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 83V |
| Duty Cycle | - |
| Frequency - Switching | 170kHz |
| Power (Watts) | 65 W |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSSOP |
| ROHS |  |
