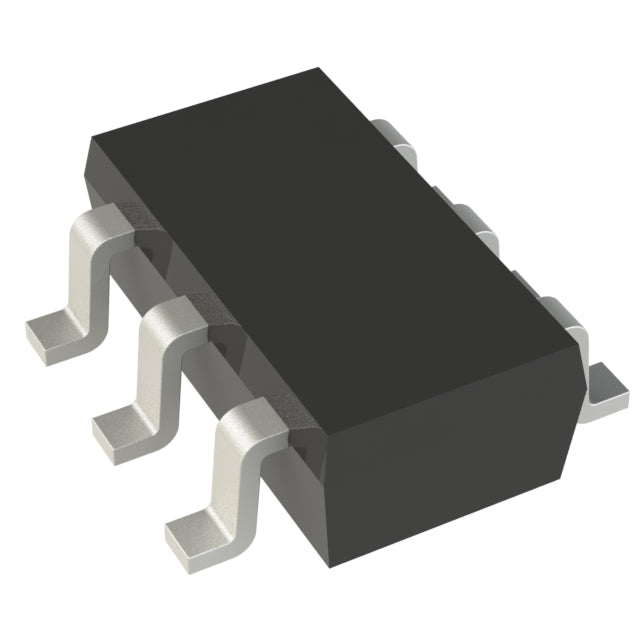

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NEX80805DAZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.97 AED | Dhs. 0.97 AED |
| 15+ | Dhs. 0.93 AED | Dhs. 13.95 AED |
| 25+ | Dhs. 0.91 AED | Dhs. 22.75 AED |
| 50+ | Dhs. 0.86 AED | Dhs. 43.00 AED |
| 100+ | Dhs. 0.76 AED | Dhs. 76.00 AED |
| N+ | Dhs. 0.15 AED | Price Inquiry |
Couldn't load pickup availability
NEX80805DAZ - High-Performance Flyback Controller IC
The NEX80805DAZ from Nexperia is a high-reliability isolated flyback secondary-side synchronous rectification (SR) controller designed for power supply applications up to 65W. Engineered for aerospace, automotive, industrial, medical, and telecom sectors, this controller delivers exceptional efficiency and comprehensive fault protection in a compact TSSOP-6 surface mount package.
Key Features & Benefits
- Wide Input Range: 10V to 83V supply voltage with 17V start-up voltage
- High Power Capability: Supports up to 65W output power
- Efficient Switching: 65kHz switching frequency with 78% duty cycle
- Comprehensive Protection: Current limiting, overload, over-power, over-temperature, over-voltage, and short circuit protection
- Soft Start Control: Reduces inrush current and improves system reliability
- Extended Temperature Range: -40°C to 125°C junction temperature for harsh environments
- RoHS Compliant: Meets environmental standards for global distribution
Applications
Ideal for isolated DC-DC converters, AC-DC adapters, industrial power supplies, telecom equipment, and automotive electronics requiring high reliability and full traceability.
Design Support: Full datasheets, reference designs, and technical resources available for design-in support. Contact our engineering team for application assistance.
Quality & Compliance: 100% traceable with RoHS/REACH compliance documentation. Suitable for production-scale sourcing with tape and reel packaging options.
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | NEX8080 |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 83V |
| Duty Cycle | 78% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 65 W |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSSOP |
| ROHS |  |
NEX80805DAZ.pdf
