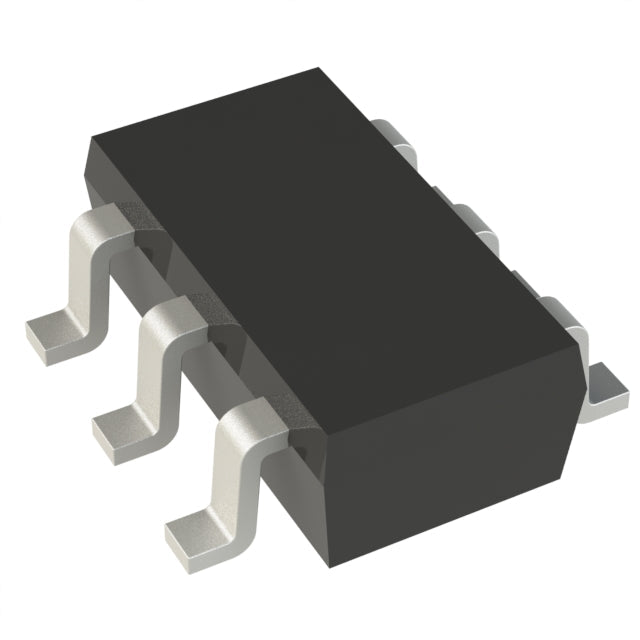

NEX80809DAZ - High-Performance Flyback Controller IC
The NEX80809DAZ from Nexperia USA Inc. is an advanced isolated flyback controller IC designed for secondary side synchronous rectification (SR) applications. This high-efficiency power management solution delivers up to 33W of power with exceptional reliability and comprehensive protection features, making it ideal for AC-DC power supply designs in industrial, consumer, and telecommunications applications.
Key Features & Benefits
- Wide Input Voltage Range: 10V to 83V supply voltage with 17V start-up threshold
- High Efficiency: 85kHz switching frequency with 78% duty cycle for optimized performance
- Comprehensive Protection: Current limiting, overload, over-power, over-temperature, over-voltage, and short circuit protection
- Soft Start Control: Reduces inrush current and extends component lifespan
- Compact Surface Mount Package: Space-saving SOT-23-6 Thin (6-TSSOP) design
- Extended Temperature Range: -40°C to 125°C junction temperature for harsh environments
- RoHS Compliant: Environmentally friendly and regulation-ready
Applications
- AC-DC power supplies and adapters
- Industrial control systems
- Telecommunications equipment
- Consumer electronics power management
- LED lighting drivers
- Battery chargers
Design Support & Resources
Full technical documentation, application notes, and reference designs are available to accelerate your design-in process. Our engineering team provides comprehensive support for power supply optimization and compliance requirements.
Quality & Compliance
Manufactured by Nexperia USA Inc., a trusted leader in semiconductor components, the NEX80809DAZ meets stringent quality standards and is fully RoHS compliant for global market requirements. Tape & Reel packaging ensures automated assembly compatibility and production efficiency.
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | NEX8080 |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 83V |
| Duty Cycle | 78% |
| Frequency - Switching | 85kHz |
| Power (Watts) | 33 W |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSSOP |
| ROHS |  |
