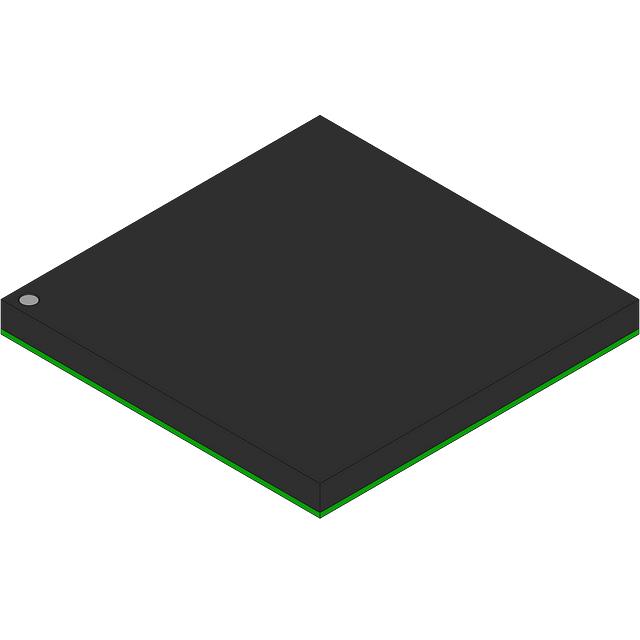

Altera NH82371EBE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $67.72 | $67.72 |
| 15+ | $15.58 | $233.70 |
| 25+ | $15.24 | $381.00 |
| 50+ | $14.39 | $719.50 |
| 100+ | $12.70 | $1,270.00 |
| N+ | $2.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Altera |
| Product Series | Pentium® |
| Packaging | Bulk | |
| Applications | Controller |
| Interface | PCI |
| Voltage - Supply | 3V ~ 3.6V, 4.75V ~ 5.25V |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 324-BBGA |
| Supplier Device Package | 324-BGA (27x27) |
The Altera NH82371EBE is a PCI interface controller designed to manage bus operations in computing and embedded systems. It supports dual supply voltages (3V-3.6V and 4.75V-5.25V) to accommodate both PCI signaling levels. This surface-mount component is housed in a large 324-BBGA package, providing numerous I/O pins for complex bus routing. It is a fundamental building block for systems requiring a robust PCI interface.
- Robust PCI Bus Management: Provides essential control and data path management for PCI-based systems, ensuring reliable communication between the host and peripherals.
- Dual Voltage Compatibility: Supports both 3.3V and 5V PCI signaling environments, making it versatile for use in a wide range of system designs.
- High Pin-Count Package: The 324-BGA package offers ample connectivity for complex bus architectures and high-speed signal routing.
- Proven Controller Design: Based on a well-established controller architecture, it offers a stable and known solution for system designers.
Legacy System Controllers
The NH82371EBE serves as a core PCI controller in older computer systems, managing data traffic between the CPU, memory, and peripheral devices on the PCI bus.
Embedded x86 Platforms
In embedded systems based on x86 architecture, this controller provides the necessary PCI interface logic to connect standard peripheral cards and custom I/O boards to the main processor.
Industrial Computing
For industrial PCs and servers that require support for legacy PCI cards, this component ensures compatibility and stable operation, bridging the main system bus to the PCI expansion slots.
Communication Infrastructure
In networking and telecom equipment, the NH82371EBE can be used to manage PCI-based interface cards for network controllers, modems, or other communication peripherals.
- Q: What is the role of the NH82371EBE?
- A: It functions as a Controller, specifically a PCI interface controller.
- Q: What interface protocol does it support?
- A: It supports the PCI (Peripheral Component Interconnect) bus protocol.
- Q: What are the supply voltage specifications?
- A: It requires dual supply voltages: 3V to 3.6V and 4.75V to 5.25V.
- Q: What is the package type for this IC?
- A: It is available in a 324-BBGA package, also known as 324-BGA (27x27).
- Q: What is the mounting style?
- A: It is designed for Surface Mount assembly.
