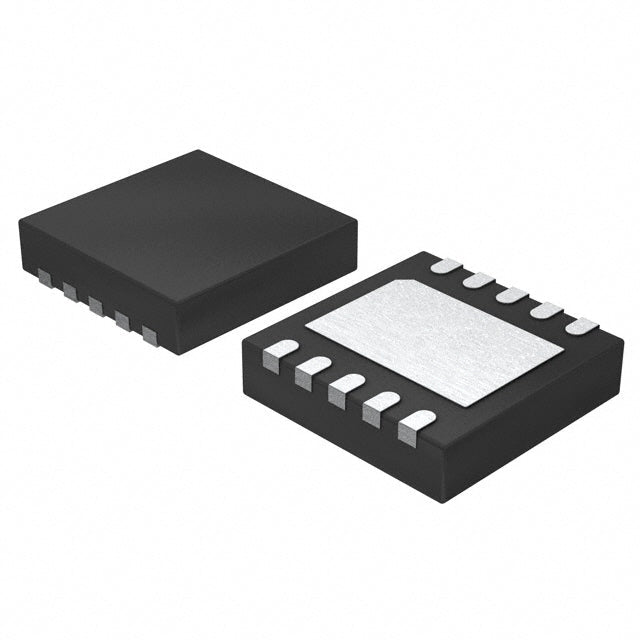

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NIS5132MN1-FN-7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.76 AED | Dhs. 1.76 AED |
| 15+ | Dhs. 1.69 AED | Dhs. 25.35 AED |
| 25+ | Dhs. 1.66 AED | Dhs. 41.50 AED |
| 50+ | Dhs. 1.56 AED | Dhs. 78.00 AED |
| 100+ | Dhs. 1.38 AED | Dhs. 138.00 AED |
| N+ | Dhs. 0.28 AED | Price Inquiry |
Couldn't load pickup availability
NIS5132MN1-FN-7 Electronic Fuse IC - High-Side Current Protection
The NIS5132MN1-FN-7 from Diodes Incorporated is a precision electronic fuse IC designed for high-side current sensing and protection applications. This advanced current regulation IC delivers reliable overcurrent protection for automotive, industrial, and consumer electronics systems operating from 9V to 18V input voltage ranges.
Key Features & Benefits
- Wide Input Voltage Range: 9V to 18V for versatile power supply compatibility
- High Current Output: 3.6A maximum output current capacity
- High-Side Sensing: Enables ground-referenced load monitoring without disrupting return paths
- Extended Temperature Range: -40°C to 150°C operation for harsh environments
- Compact Surface Mount Package: 10-UFDFN with exposed pad for superior thermal performance
- RoHS Compliant: Environmentally friendly and meets global regulatory standards
Applications
Ideal for USB power delivery protection, hot-swap circuits, automotive power distribution, battery charging systems, LED driver protection, and industrial control equipment requiring precision current limiting and monitoring.
Why Choose HQICKEY?
At HQICKEY, we guarantee 100% authentic semiconductor components with full manufacturer warranty support. Every NIS5132MN1-FN-7 IC ships with quality certification and is backed by our commitment to excellence in component distribution.
Related Products & Resources
Explore our complete range of Current Regulation & Management ICs for precision current control solutions from 100µA to 50A, including current limiting, monitoring, eFuse protection for USB PD, hot-swap, LED drivers, and battery charging applications.
Stay updated with the latest semiconductor industry news, technical articles, and product announcements on our HQICKEY News Blog.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Electronic Fuse |
| Sensing Method | High-Side |
| Accuracy | - |
| Voltage - Input | 9V ~ 18V |
| Current - Output | 3.6A |
| Operating Temperature | -40°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | U-DFN3030-10 |
| ROHS |  |
NIS5132MN1-FN-7.pdf
