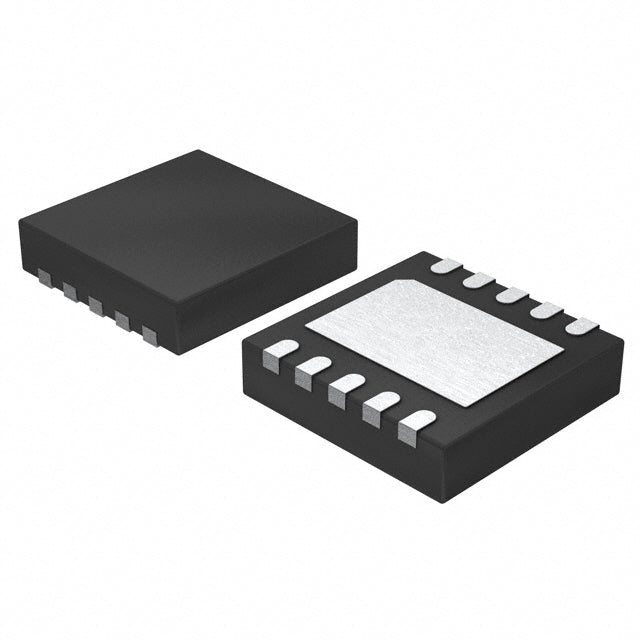

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NIS5135MN1-FN-7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.54 AED | Dhs. 1.54 AED |
| 15+ | Dhs. 1.48 AED | Dhs. 22.20 AED |
| 25+ | Dhs. 1.45 AED | Dhs. 36.25 AED |
| 50+ | Dhs. 1.37 AED | Dhs. 68.50 AED |
| 100+ | Dhs. 1.21 AED | Dhs. 121.00 AED |
| N+ | Dhs. 0.24 AED | Price Inquiry |
Couldn't load pickup availability
NIS5135MN1-FN-7 Electronic Fuse IC Overview
The NIS5135MN1-FN-7 is a high-performance electronic fuse integrated circuit manufactured by Diodes Incorporated. This advanced current regulation and management IC provides reliable overcurrent protection for your electronic systems with high-side sensing technology.
Key Features & Benefits
- Wide Input Voltage Range: Operates from 3.1V to 18V, making it versatile for various applications
- High Current Output: Supports up to 3.6A output current for demanding power requirements
- Extended Temperature Range: Functions reliably from -40°C to 150°C for harsh environments
- Compact Surface Mount Design: 10-UFDFN exposed pad package (U-DFN3030-10) saves valuable board space
- High-Side Sensing: Provides accurate current monitoring and protection
- RoHS Compliant: Meets environmental standards for safe, eco-friendly electronics
Applications
This electronic fuse IC is ideal for power management in automotive systems, industrial equipment, consumer electronics, and battery-powered devices requiring precise overcurrent protection and current limiting functionality.
Why Choose HQICKEY?
At HQICKEY, we guarantee 100% authentic semiconductor components with full manufacturer warranty support. All products are sourced directly from authorized distributors and undergo rigorous quality inspection before shipping.
Related Products
Looking for more current regulation and management solutions? Browse our complete Current Regulation & Management ICs collection for similar products and complementary components.
Technical Resources & Support
Need technical specifications, application notes, or design guidance? Visit our Technical Blog & News section for the latest industry insights, product updates, and engineering resources to help you make informed decisions for your projects.
Order your NIS5135MN1-FN-7 today and experience reliable overcurrent protection for your electronic designs!
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Electronic Fuse |
| Sensing Method | High-Side |
| Accuracy | - |
| Voltage - Input | 3.1V ~ 18V |
| Current - Output | 3.6A |
| Operating Temperature | -40°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | U-DFN3030-10 |
| ROHS |  |
NIS5135MN1-FN-7.pdf
