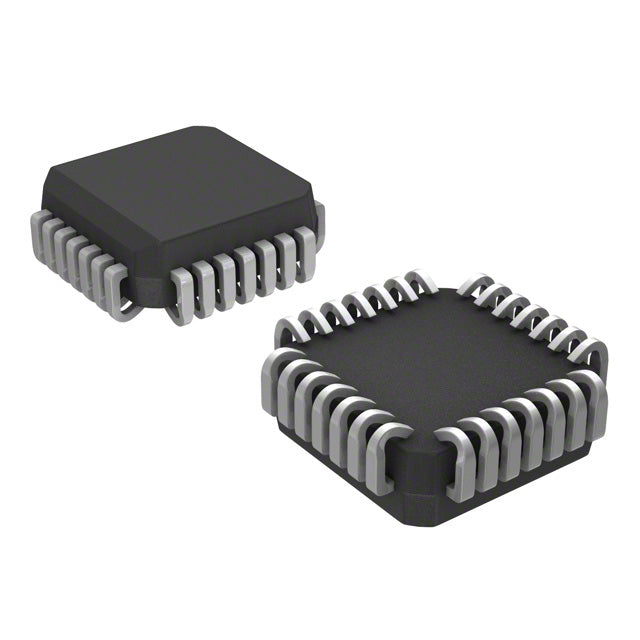

Nisshinbo Micro Devices Inc. NJM3772FM2
Regular price
$14.01
Regular price
$3.50
Sale price
$14.01
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.01 | $14.01 |
| 15+ | $3.22 | $48.30 |
| 25+ | $3.15 | $78.75 |
| 50+ | $2.98 | $149.00 |
| 100+ | $2.63 | $263.00 |
| N+ | $0.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Part Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 40V |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package / Case | 28-PLCC (11.51x11.51) |
| ROHS |  |
NJM3772FM2.pdf
×
