onsemi NL37WZ16USG-Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.53 | $0.53 |
| 15+ | $0.12 | $1.80 |
| 25+ | $0.12 | $3.00 |
| 50+ | $0.11 | $5.50 |
| 100+ | $0.10 | $10.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 3 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

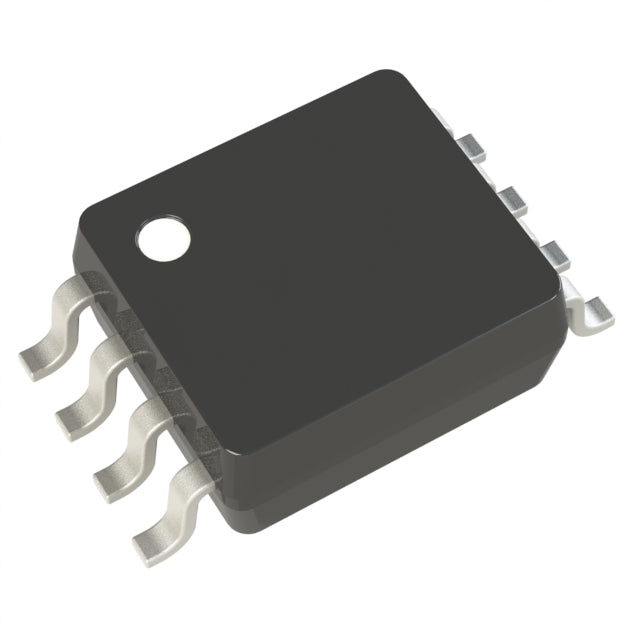

| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VFSOP (0.091", 2.30mm Width) |
The NL37WZ16USG-Q from onsemi is a triple non-inverting buffer designed for general-purpose logic applications. Operating from 1.65V to 5.5V, it provides high-speed signal buffering with 32mA output drive capability. The push-pull outputs ensure clean signal transitions without external components. Housed in a compact 8-VFSOP package, this buffer is ideal for space-constrained designs requiring reliable signal conditioning and fan-out.
- Wide 1.65V to 5.5V Supply Range: Compatible with both 3.3V and 5V systems, simplifying design.
- High 32mA Output Drive: Ensures robust signal integrity even with heavy capacitive loads.
- Triple Channel Configuration: Saves board space by integrating three buffers in one package.
- Push-Pull Outputs: Eliminates the need for external pull-up resistors, reducing component count.
- Extended Temperature Range (-55°C to 125°C): Suitable for harsh automotive and industrial environments.
Mixed-Voltage System Interfacing
With a wide 1.65V to 5.5V supply range, the NL37WZ16USG-Q can interface between 1.8V, 2.5V, and 3.3V logic domains, ensuring reliable signal translation in multi-voltage PCBs.
High-Drive Signal Buffering
The 32mA push-pull output capability allows this buffer to drive heavily loaded buses or long PCB traces, reducing signal degradation and maintaining signal integrity.
Clock and Control Signal Distribution
Use this triple buffer to fan out clock or reset signals to multiple loads without significant delay, thanks to its low propagation delay and high output drive.
Port Expansion for Microcontrollers
When a microcontroller's GPIO pins lack sufficient drive strength, the NL37WZ16USG-Q can boost the signal to control LEDs, relays, or other peripheral devices.
Industrial Sensor Conditioning
In industrial control systems, this buffer can clean and amplify signals from sensors, ensuring robust communication with PLCs or MCUs over short distances.
Battery-Powered Portable Devices
Its low-voltage operation down to 1.65V makes it ideal for battery-powered equipment, where power efficiency and low-voltage logic are critical.
- Q: What is the logic family of the NL37WZ16USG-Q?
- A: This device belongs to the high-performance NL37WZ series, operating from 1.65V to 5.5V.
- Q: What is the function and channel count?
- A: It is a triple (3-channel) non-inverting buffer with push-pull outputs.
- Q: What is the output type?
- A: The output type is Push-Pull, providing strong drive without the need for pull-up resistors.
- Q: What is the operating voltage range?
- A: The supply voltage range is 1.65V to 5.5V, making it suitable for low-voltage and standard logic applications.
- Q: What is the package type?
- A: It comes in an 8-VFSOP (Very Fine-pitch Small Outline Package) with a 2.30mm width.
- Q: What is the output current capability?
- A: It can source and sink 32mA of current per channel.
