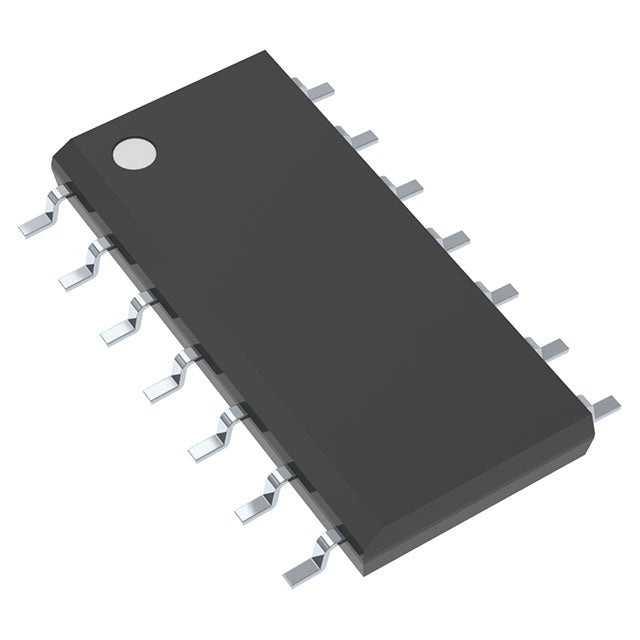

onsemi NM93CS46EM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.93 | Dhs. 3.93 |
| 15+ | Dhs. 3.83 | Dhs. 57.45 |
| 25+ | Dhs. 3.74 | Dhs. 93.50 |
| 50+ | Dhs. 3.54 | Dhs. 177.00 |
| 100+ | Dhs. 3.12 | Dhs. 312.00 |
| N+ | Dhs. 0.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 1Kbit |
| Memory Organization | 64 x 16 |
| Memory Interface | Microwire |
| Clock Frequency | 1 MHz |
| Write Cycle Time - Word, Page | 10ms |
| Access Time | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
NM93CS46EM - 1Kbit EEPROM Memory IC Overview
The NM93CS46EM from onsemi is a high-reliability 1Kbit EEPROM memory device designed for embedded and industrial applications requiring non-volatile data storage. This surface-mount IC features a Microwire serial interface, making it ideal for space-constrained designs where reliable, long-term data retention is critical.
Key Features & Benefits
- 1Kbit Memory Capacity: Organized as 64 words × 16 bits for flexible data storage
- Microwire Serial Interface: Simple 3-wire communication protocol reduces pin count and board complexity
- Fast Clock Speed: 1MHz operation enables quick read/write cycles
- Low Power Operation: 4.5V to 5.5V supply voltage range for energy-efficient designs
- Industrial Temperature Range: Rated for -40°C to 85°C operation in harsh environments
- Surface Mount Package: Compact 14-SOIC package (3.90mm width) saves valuable PCB space
- 10ms Write Cycle Time: Reliable data programming with proven EEPROM technology
Typical Applications
This EEPROM is perfectly suited for storing configuration data, calibration parameters, user settings, and security codes in industrial controllers, automotive electronics, medical devices, consumer appliances, and embedded systems where non-volatile memory is essential.
Why Choose HQICKEY?
At HQICKEY, we specialize in authentic semiconductor sourcing with a focus on lifecycle support and long-term availability. Our extensive Memory catalog includes EEPROM, Flash, DRAM, and SRAM solutions from leading manufacturers. Every component is verified for authenticity and backed by our commitment to quality and reliability.
For the latest industry insights, technical resources, and product announcements, visit our News & Updates blog.
NM93CS46EM.pdf
