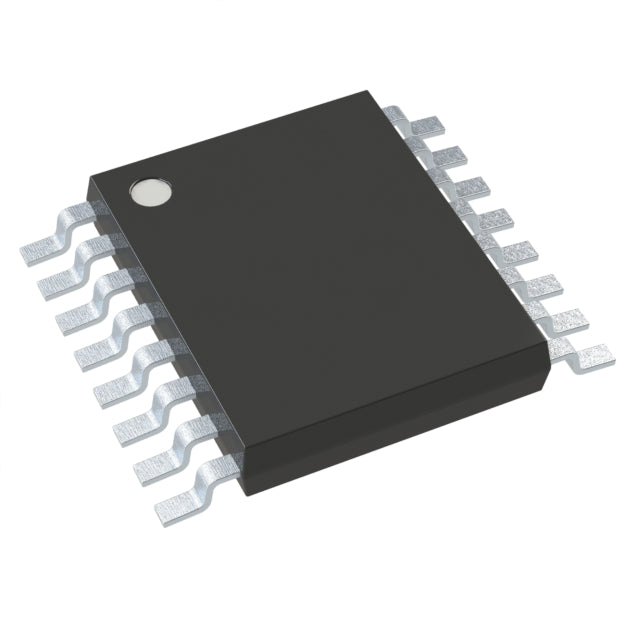

Nexperia USA Inc. NMUX1309PW-Q100J
Regular price
$0.35
Regular price
$0.37
Sale price
$0.35
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.35 | $0.35 |
| 15+ | $0.34 | $5.10 |
| 25+ | $0.33 | $8.25 |
| 50+ | $0.31 | $15.50 |
| 100+ | $0.28 | $28.00 |
| N+ | $0.06 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 146Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 1.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 17ns, 69ns |
| -3db Bandwidth | 380MHz |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA (Typ) |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
NMUX1309PW-Q100J.pdf
×
