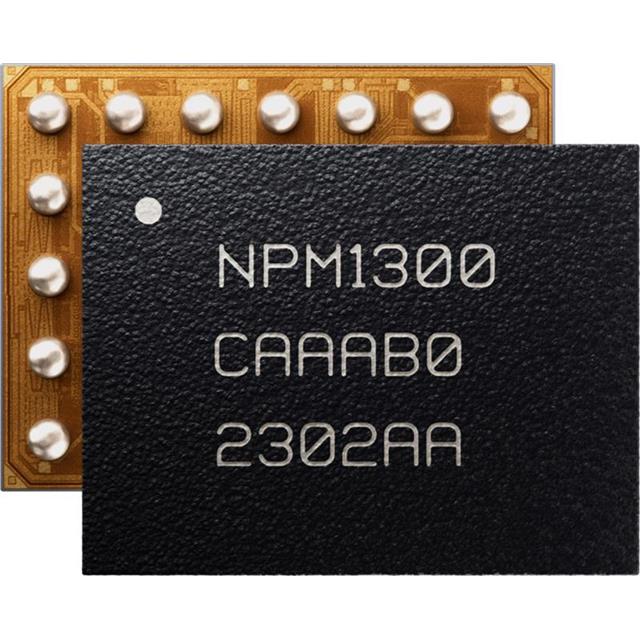

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $3.92
Regular price $4.13 Sale price $3.92
Sale Sold out
Quantity Unit Price Total Price
1 $3.92 $3.92
15+ $3.80 $57.00
25+ $3.72 $93.00
50+ $3.51 $175.50
100+ $3.10 $310.00
N+ $0.62 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Nordic Semiconductor ASA
Product Series
Packaging Cut Tape (CT) | Tape & Reel (TR)
Function Power Management
Battery Chemistry Lithium Ion/Polymer
Number of Cells 1
Fault Protection Over Current, Over Temperature, Over/Under Voltage
Interface GPIO, I2C
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case 35-UFBGA, WLCSP
Supplier Device Package 35-WLCSP (3.08x2.38)
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The NPM1300-CAAA-R7 from Nordic Semiconductor is a compact Power Management IC designed for single-cell Lithium Ion/Polymer batteries. It integrates essential protection features such as Over Current, Over Temperature, and Over/Under Voltage into an ultra-small 35-UFBGA WLCSP package. Featuring GPIO and I2C interfaces, this PMIC offers flexible control and monitoring for space-constrained portable devices. Its wide -40°C to 85°C operating temperature range ensures reliable performance across diverse applications.

  • Ultra-Compact WLCSP Package: The 35-UFBGA WLCSP package is ideal for miniaturized designs, saving critical board space.
  • Comprehensive Safety: Integrated Over Current, Over Temperature, and Over/Under Voltage protection ensures battery safety.
  • Wide Temperature Range: -40°C to 85°C operation makes it suitable for industrial and outdoor use.
  • Flexible Interfacing: GPIO and I2C interfaces provide versatile control and monitoring capabilities.

Ultra-Compact Wearables

The 35-UFBGA WLCSP package of the NPM1300-CAAA-R7 is ideal for ultra-thin wearable devices where board space is at a premium, providing efficient single-cell Li-Poly power management.

Smart Watches & Fitness Trackers

With I2C interface and GPIO for system control, this PMIC enables smart watches to monitor battery status and implement safety features like over-temperature and over-voltage protection.

Wireless Earbuds & Charging Cases

The tiny WLCSP footprint allows for integration into compact charging cases, ensuring safe charging and discharging of the internal lithium polymer battery with over-current protection.

Medical Patches & Biosensors

Disposable or long-wear medical patches benefit from the -40°C to 85°C operating range and reliable protection features, ensuring patient safety in varying conditions.

IoT Nodes & Smart Tags

Small form-factor IoT devices can leverage the GPIO and I2C interfaces for sensor data collection and communication, while the PMIC ensures robust power delivery and battery safety.

Q: What is the primary function of the NPM1300-CAAA-R7?
A: It is a Power Management IC designed for battery-powered applications.
Q: Which battery chemistries are supported?
A: It supports Lithium Ion/Polymer batteries.
Q: How many cells can this device manage?
A: It is designed for single-cell (1) battery configurations.
Q: What fault protection features are included?
A: It provides Over Current, Over Temperature, and Over/Under Voltage protection.
Q: What communication interfaces does it offer?
A: It features GPIO and I2C interfaces.
Q: What is the operating temperature range and package type?
A: It operates from -40°C to 85°C and comes in a 35-UFBGA, WLCSP package.
Base Product Number : NPM1300-CAAA
1 Cell 35-UFBGA Battery Management BMS GPIO I2C Lithium Ion/Polymer Nordic Semiconductor Power Management WLCSP
