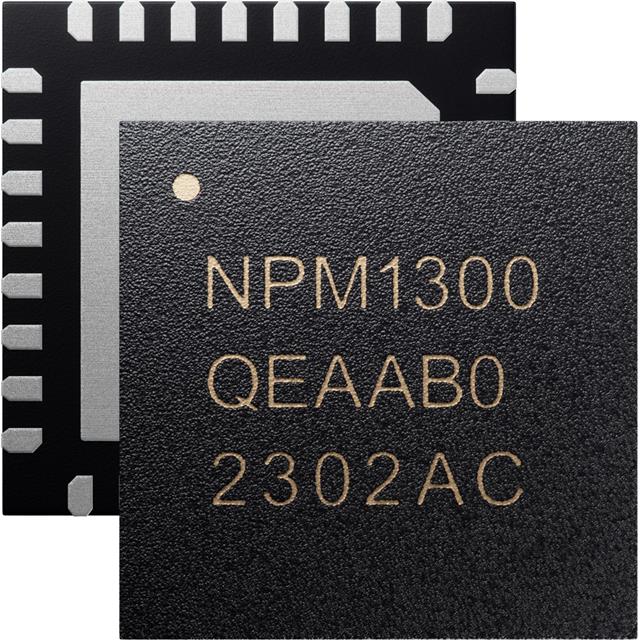

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $3.92
Regular price $4.13 Sale price $3.92
Sale Sold out
Quantity Unit Price Total Price
1 $3.92 $3.92
15+ $3.80 $57.00
25+ $3.72 $93.00
50+ $3.51 $175.50
100+ $3.10 $310.00
N+ $0.62 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Nordic Semiconductor ASA
Product Series
Packaging Cut Tape (CT) | Tape & Reel (TR)
Function Power Management
Battery Chemistry Lithium Ion/Polymer
Number of Cells 1
Fault Protection Over Current, Over Temperature, Over/Under Voltage
Interface GPIO, I2C
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The NPM1300-QEAA-R from Nordic Semiconductor is a highly integrated Power Management IC tailored for single-cell Lithium Ion/Polymer battery applications. It combines essential protection features including Over Current, Over Temperature, and Over/Under Voltage safeguards into a compact 32-VFQFN package. With a flexible GPIO and I2C interface, this PMIC enables precise system control and monitoring. Its wide operating temperature range of -40°C to 85°C makes it a versatile choice for portable and industrial devices requiring reliable power management.

  • Comprehensive Protection: Integrated Over Current, Over Temperature, and Over/Under Voltage protection ensures battery safety and extends lifespan.
  • Wide Temperature Operation: Rated for -40°C to 85°C, it is suitable for industrial and outdoor applications where temperature extremes are common.
  • Flexible Control: The combination of GPIO and I2C interfaces allows for easy system integration and dynamic power management.
  • Compact Footprint: The 32-VFQFN Exposed Pad package minimizes PCB space, ideal for space-constrained portable designs.

Portable Medical Devices

The NPM1300-QEAA-R's wide -40°C to 85°C temperature range and robust over/under voltage protection make it suitable for reliable power management in portable medical monitoring equipment.

Industrial IoT Sensors

With I2C interface for configuration and monitoring, this PMIC is ideal for remote industrial sensors that require efficient single-cell Li-ion power management and protection against over-temperature events.

Wearable Electronics

The compact 32-VFQFN package and single-cell Li-Poly support enable space-constrained wearable devices to benefit from integrated over-current and over-voltage safeguards.

Smart Home Devices

Smart locks, sensors, and hubs can leverage the GPIO and I2C interfaces for system control, while the integrated protection features ensure safe operation of the lithium polymer battery.

Handheld Test Equipment

Field technicians rely on handheld tools that must operate in varying temperatures. This PMIC's -40°C to 85°C rating ensures dependable performance in demanding outdoor environments.

Q: What is the primary function of the NPM1300-QEAA-R?
A: It is a Power Management IC designed for battery-powered applications.
Q: Which battery chemistries are supported?
A: It supports Lithium Ion/Polymer batteries.
Q: How many cells can this device manage?
A: It is designed for single-cell (1) battery configurations.
Q: What fault protection features are included?
A: It provides Over Current, Over Temperature, and Over/Under Voltage protection.
Q: What communication interfaces does it offer?
A: It features GPIO and I2C interfaces.
Q: What is the operating temperature range and package type?
A: It operates from -40°C to 85°C and comes in a 32-VFQFN Exposed Pad package.
Base Product Number : NPM1300-QEAA
1 Cell 32-VFQFN Battery Management BMS GPIO I2C Lithium Ion/Polymer Nordic Semiconductor Power Management
