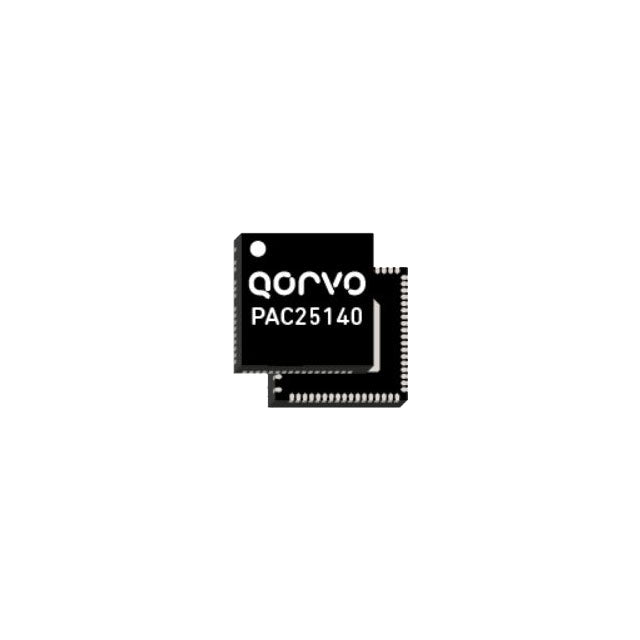

Qorvo PAC25140-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.75 | $23.75 |
| 15+ | $5.46 | $81.90 |
| 25+ | $5.35 | $133.75 |
| 50+ | $5.05 | $252.50 |
| 100+ | $4.46 | $446.00 |
| N+ | $0.89 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Qorvo |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Monitor |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 10 ~ 20 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage |
| Interface | I2C, UART |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (10x10) |
| ROHS |  |
The Qorvo PAC25140-T is a high-performance Battery Monitor engineered for large Lithium Ion/Polymer battery packs. It is designed to accurately monitor 10 to 20 series-connected cells, providing essential data for battery management systems. This monitor integrates comprehensive fault protection, including Over Current, Over Temperature, and Over/Under Voltage safeguards. With flexible I2C and UART communication interfaces and a wide -40°C to 125°C operating range, it is well-suited for demanding applications such as electric vehicles, industrial energy storage, and high-capacity portable equipment. Its compact 68-VFQFN package enables efficient board layout in space-constrained designs.
- High-Cell-Count Monitoring: Supports 10 to 20 cells, enabling precise management of large battery stacks in EVs and ESS.
- Comprehensive Safety: Integrated Over Current, Over Temperature, and Over/Under Voltage protection ensures safe operation under fault conditions.
- Flexible Communication: Dual I2C and UART interfaces provide design flexibility for various system architectures.
- Wide Temperature Operation: Rated for -40°C to 125°C, making it reliable for harsh industrial and automotive environments.
High-Cell-Count Lithium-Ion Battery Packs
The PAC25140-T, supporting 10 to 20 cells, is ideal for large-format battery packs found in electric vehicles, e-bikes, and energy storage systems. Its high cell count capability allows for precise monitoring of each cell in a series stack.
Industrial Energy Storage Systems (ESS)
With an operating temperature range of -40°C to 125°C, this battery monitor is suitable for demanding industrial environments. It can reliably track battery health and state of charge in outdoor or unheated ESS installations.
Electric Vehicle (EV) Battery Management
The PAC25140-T's robust fault protection, including Over Current and Over/Under Voltage, is critical for EV safety. Its I2C and UART interfaces enable seamless communication with the vehicle's main BMS controller.
Telecom and Data Center Backup Power
For backup power systems that require high reliability, this monitor provides accurate cell voltage and temperature data. The wide temperature range ensures operation in various climate-controlled and semi-exposed environments.
Robotics and Automated Guided Vehicles (AGVs)
In robotics, precise battery monitoring is essential for maximizing uptime. The PAC25140-T's multi-cell support and communication capabilities allow for sophisticated state-of-charge algorithms in high-voltage battery systems.
Portable High-Power Equipment
For large portable equipment like industrial cleaning machines or medical carts, this monitor offers the necessary cell monitoring and protection features to ensure safe and efficient operation of Lithium Ion/Polymer battery packs.
- Q: What is the primary function of the PAC25140-T?
- A: It is a Battery Monitor designed for Lithium Ion/Polymer battery packs.
- Q: How many cells can this battery monitor support?
- A: It supports 10 to 20 cells in series.
- Q: What fault protection features does it include?
- A: It provides protection against Over Current, Over Temperature, and Over/Under Voltage conditions.
- Q: What communication interfaces are available?
- A: It features both I2C and UART interfaces for data communication.
- Q: What is the operating temperature range?
- A: It operates over a wide temperature range of -40°C to 125°C (TA).
- Q: What package is the PAC25140-T available in?
- A: It comes in a 68-VFQFN Exposed Pad package.
