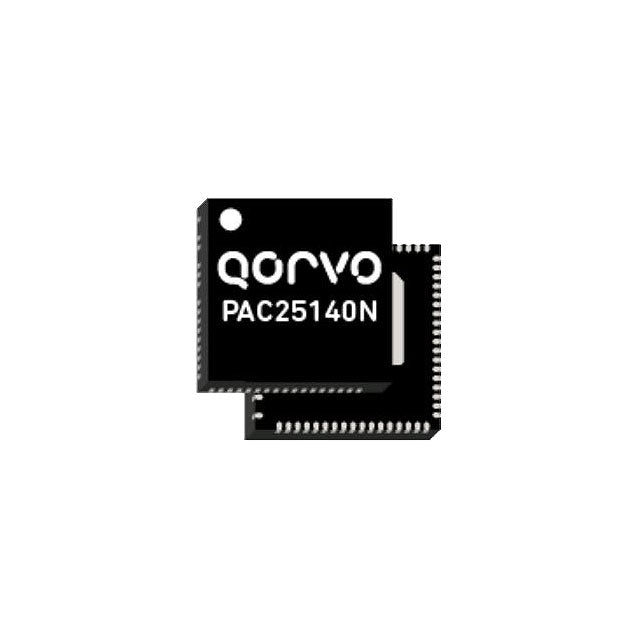

Qorvo PAC25140N-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.75 | $23.75 |
| 15+ | $5.46 | $81.90 |
| 25+ | $5.35 | $133.75 |
| 50+ | $5.05 | $252.50 |
| 100+ | $4.46 | $446.00 |
| N+ | $0.89 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Qorvo |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Balancing |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 10 ~ 20 |
| Fault Protection | Over Current, Over Voltage, Short Circuit |
| Interface | CAN, I2C, SPI, UART |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (10x10) |
| ROHS |  |
The PAC25140N from Qorvo is a high-cell-count battery balancing IC supporting 10 to 20 cells. It offers comprehensive protection including over-current, over-voltage, and short-circuit. With CAN, I2C, SPI, and UART interfaces, it provides maximum connectivity options. The operating range of -40°C to 105°C makes it suitable for automotive and industrial use. The 68-VFQFN package handles high power dissipation.
- High cell count: 10-20 cells supports large battery packs for EVs and storage.
- Multiple interfaces: CAN, I2C, SPI, and UART offer flexible system integration.
- Comprehensive protection: Over-current, over-voltage, and short-circuit safeguards.
- Wide temperature range: -40°C to 105°C covers automotive and industrial applications.
Electric Vehicle Battery Packs
Balance 10-20 cell modules in EVs. CAN interface enables seamless integration with vehicle networks.
Large-Scale Energy Storage
Manage battery racks in grid storage. Multiple interfaces (SPI, I2C, UART) provide design flexibility.
Industrial Forklifts
Balance high-voltage lithium packs. Over-current protection handles peak motor currents.
Marine Hybrid Propulsion
Monitor and balance battery banks in boats. The -40°C to 105°C range suits engine compartments.
Telecom Backup Systems
Manage 48V battery strings. Short circuit protection ensures system safety.
Solar Power Storage
Balance battery banks in residential solar systems. The 68-VFQFN package supports high-current paths.
- Q: What is the function of the PAC25140N?
- A: It is a Battery Balancing device for multi-chemistry packs.
- Q: How many cells does it support?
- A: It supports 10 to 20 cells in series.
- Q: What fault protections are included?
- A: It provides Over Current, Over Voltage, and Short Circuit protection.
- Q: What interfaces are available?
- A: It supports CAN, I2C, SPI, and UART interfaces.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C (TA).
- Q: What package is available?
- A: It comes in a 68-VFQFN Exposed Pad package.
