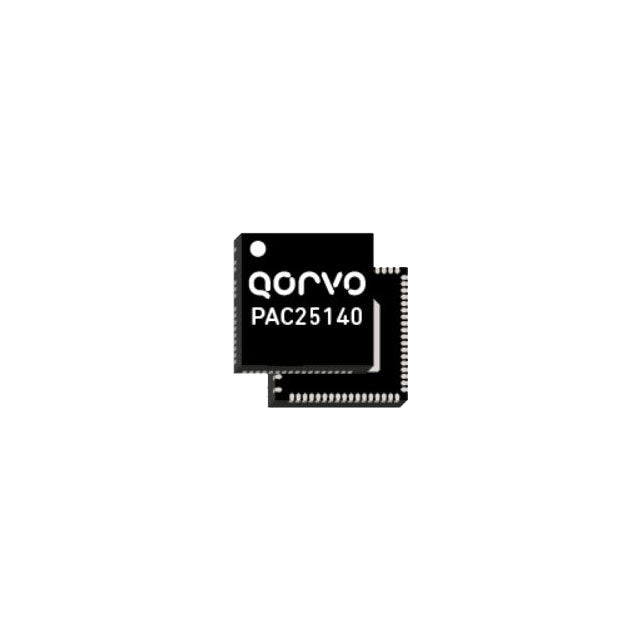

Qorvo PAC25140SR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $38.45 | $38.45 |
| 15+ | $8.84 | $132.60 |
| 25+ | $8.65 | $216.25 |
| 50+ | $8.17 | $408.50 |
| 100+ | $7.21 | $721.00 |
| N+ | $1.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Qorvo |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Monitor |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 10 ~ 20 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage |
| Interface | I2C, UART |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (10x10) |
| ROHS |  |
The PAC25140SR from Qorvo is a high-performance Battery Monitor for Lithium Ion/Polymer batteries. It supports monitoring of 10 to 20 cells and provides over current, over temperature, and over/under voltage protection. With both I2C and UART interfaces, it offers flexible communication options for various system architectures. The wide operating temperature range of -40°C to 105°C makes it suitable for demanding applications. The 68-VFQFN Exposed Pad package enables compact, thermally efficient designs.
- Very High Cell Count: Supports up to 20 cells, ideal for high-voltage battery packs.
- Dual Interface Flexibility: I2C and UART options allow integration with diverse host systems.
- Comprehensive Protection: Includes overcurrent, over-temperature, and over/under-voltage safeguards.
- Wide Temperature Range: Rated for -40°C to 105°C, suitable for outdoor and industrial use.
High-Voltage Energy Storage
Monitor 10-20 cell lithium polymer packs in grid-tied storage systems, using the I2C interface for precise data logging.
Electric Vehicle Battery Packs
Deploy in EV battery management systems where high cell counts and wide temperature operation are required.
Industrial Drone Batteries
Monitor high-capacity lithium polymer packs in industrial drones, leveraging the UART interface for telemetry.
Solar Power Backup
Manage battery banks in solar energy storage systems, with over-temperature protection for safe operation in outdoor enclosures.
Telecom Infrastructure
Monitor backup battery systems in telecom towers, where the -40°C to 105°C range ensures reliability in extreme climates.
Heavy-Duty Power Tools
Use in professional-grade power tools with 10-20 cell packs, providing overcurrent and overvoltage protection.
- Q: What is the function of the PAC25140SR?
- A: It is a Battery Monitor.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it monitor?
- A: It supports 10 to 20 cells.
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, and Over/Under Voltage protection.
- Q: What interfaces are available?
- A: It supports I2C and UART interfaces.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
