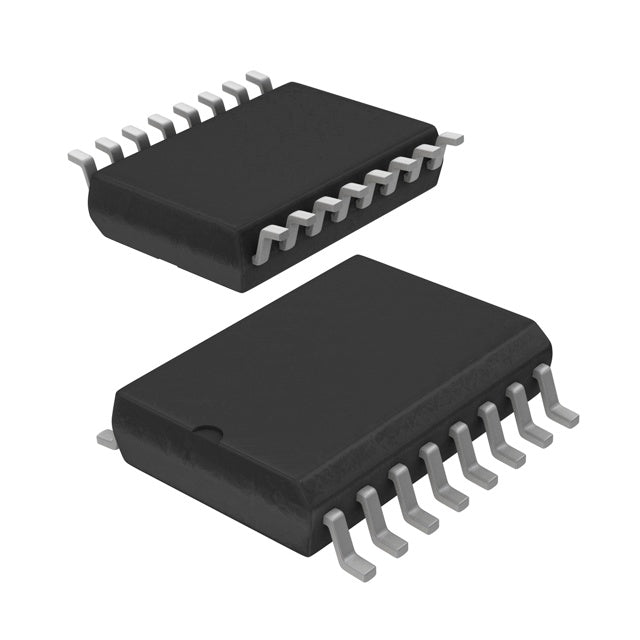

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PCA9691T/1,512
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.46 AED | Dhs. 4.46 AED |
| 15+ | Dhs. 4.31 AED | Dhs. 64.65 AED |
| 25+ | Dhs. 4.21 AED | Dhs. 105.25 AED |
| 50+ | Dhs. 3.98 AED | Dhs. 199.00 AED |
| 100+ | Dhs. 3.51 AED | Dhs. 351.00 AED |
| N+ | Dhs. 0.70 AED | Price Inquiry |
Couldn't load pickup availability
PCA9691T/1,512 - 4-Channel 8-Bit ADC/DAC Converter
The PCA9691T/1,512 from NXP USA Inc. is a versatile 4-channel, 8-bit analog-to-digital and digital-to-analog converter designed for precision data acquisition and control applications. Featuring an I2C serial interface, this IC simplifies integration into embedded systems while maintaining reliable performance across industrial temperature ranges.
Key Features & Benefits
- Dual Functionality: Combined ADC and DAC capabilities in a single compact package
- Multi-Channel Design: 4 independent channels for flexible signal processing
- Industry-Standard Interface: I2C serial communication for easy microcontroller integration
- Wide Operating Range: 2.5V to 5.5V single supply with -40°C to 85°C temperature tolerance
- Space-Efficient: Surface mount 16-SOIC package (7.50mm width) for compact PCB designs
Ideal Applications
Perfect for industrial automation, sensor signal conditioning, process control systems, data acquisition modules, and embedded measurement solutions requiring reliable analog-digital conversion with minimal component count.
All specifications are subject to manufacturer's datasheet. This product is RoHS compliant and suitable for long lifecycle industrial applications.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | ADC, DAC |
| Number of Channels | 4 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | - |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SO |
PCA9691T/1,512.pdf
