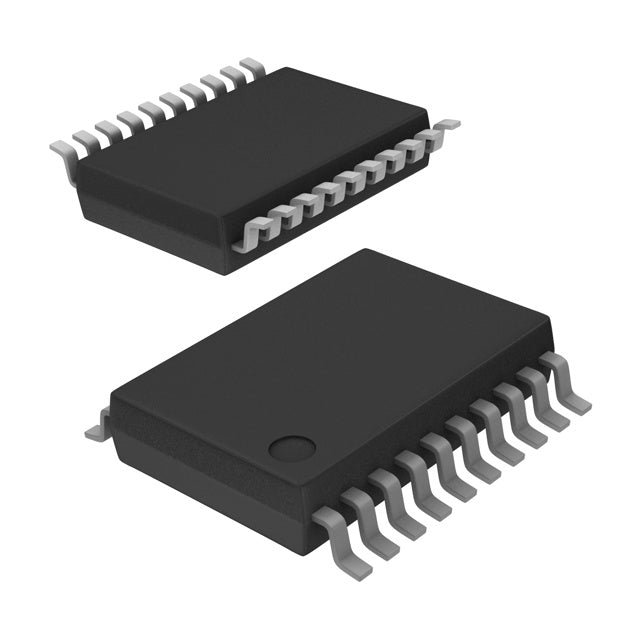

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PCM1803ADBRG4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.35 AED | Dhs. 8.35 AED |
| 15+ | Dhs. 8.10 AED | Dhs. 121.50 AED |
| 25+ | Dhs. 7.92 AED | Dhs. 198.00 AED |
| 50+ | Dhs. 7.48 AED | Dhs. 374.00 AED |
| 100+ | Dhs. 6.60 AED | Dhs. 660.00 AED |
| N+ | Dhs. 1.32 AED | Price Inquiry |
Couldn't load pickup availability
PCM1803ADBRG4 - Premium 24-Bit Stereo Audio Analog-to-Digital Converter
The PCM1803ADBRG4 from Texas Instruments delivers professional-grade audio conversion for demanding applications. This dual-channel 24-bit ADC combines exceptional signal fidelity with 96kHz sampling capability, making it the ideal choice for high-resolution audio recording, digital mixing consoles, automotive infotainment systems, and professional broadcast equipment.
Why Choose the PCM1803ADBRG4?
- Studio-Quality 24-Bit Resolution - Capture every nuance with superior dynamic range and industry-leading signal-to-noise ratio for pristine audio reproduction
- High-Speed 96kHz Sampling - Support high-resolution audio formats and achieve wide frequency response for professional applications
- True Stereo Architecture - Dual independent channels with matched performance characteristics ensure accurate stereo imaging
- Flexible Integration - Serial data interface simplifies connection to DSPs, microcontrollers, and digital audio workstations
- Dual Power Supply Design - 2.7V-3.6V analog and 4.5V-5.5V digital supplies accommodate diverse system architectures and reduce design complexity
- Industrial-Grade Reliability - Extended -40°C to +85°C operating temperature range ensures consistent performance in automotive, industrial, and harsh environments
- Space-Efficient SSOP-20 Package - Surface-mount design optimizes PCB real estate and streamlines automated assembly
- RoHS Compliant - Meets global environmental standards for worldwide distribution and regulatory compliance
Ideal Applications
Engineered for OEMs and design engineers requiring proven, long-lifecycle components, the PCM1803ADBRG4 excels in:
- Professional audio recording interfaces and studio equipment
- Automotive infotainment and premium sound systems
- Medical diagnostic and monitoring equipment
- Industrial measurement and test instruments
- High-fidelity consumer audio products
- Broadcast and telecommunications equipment
Traceability & Lifecycle Support
As an authorized distributor, we provide full manufacturer traceability documentation and long-term lifecycle support. Each PCM1803ADBRG4 unit ships with complete compliance certifications including RoHS, REACH, and conflict minerals declarations.
All specifications are subject to manufacturer's datasheet. For detailed electrical characteristics, timing diagrams, and application notes, please refer to the official Texas Instruments PCM1803A datasheet available through our technical resources.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | ADC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 96k |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
