Diodes Incorporated PI7C9X760BCLE

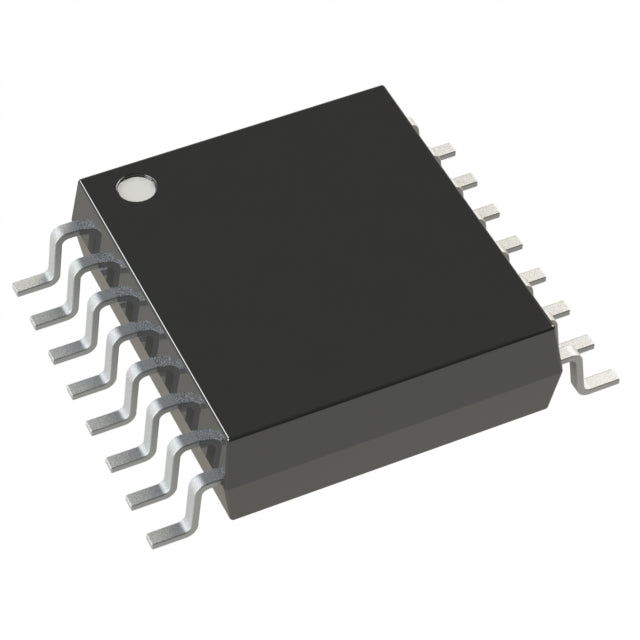

PI7C9X760BCLE - I2C/SPI to UART Bridge Controller IC

The PI7C9X760BCLE from Diodes Incorporated is a high-performance bridge controller IC designed for seamless I2C/SPI to UART interface conversion. This versatile controller IC delivers reliable signal bridging for embedded systems, industrial automation, telecommunications equipment, and mission-critical applications requiring robust data communication.

Key Features & Benefits

• Flexible Interface Support: Enables efficient I2C and SPI to UART protocol conversion for versatile system integration
• Wide Operating Voltage Range: 1.62V to 3.63V supply voltage ensures compatibility with modern low-power designs
• Industrial Temperature Range: Operates reliably from -40°C to 85°C for demanding environmental conditions
• Compact 16-TSSOP Package: Space-efficient 4.40mm width design ideal for high-density PCB layouts
• RoHS Compliant: Meets environmental standards for lead-free manufacturing
• Engineering-Grade Reliability: Designed for aerospace, automotive, medical, and industrial mission-critical systems
• Low Power Consumption: Optimized for battery-powered and energy-efficient embedded applications

Applications

This bridge controller IC is ideal for aerospace systems, automotive electronics, medical devices, industrial control systems, and telecommunications infrastructure where reliable UART communication is essential. Common use cases include sensor interface bridging, microcontroller communication expansion, legacy system integration, and multi-protocol embedded system designs.

Design Considerations

When integrating the PI7C9X760BCLE into your embedded system design, ensure proper power supply decoupling with 0.1µF ceramic capacitors placed close to the VDD pins. The device supports both I2C and SPI master modes for flexible system architecture. Pull-up resistors on I2C lines should be selected based on bus capacitance and speed requirements. For optimal signal integrity, keep UART trace lengths short and implement proper ground plane design.

Quality & Reliability

This controller IC meets stringent quality standards for industrial and automotive applications, featuring ESD protection, latch-up immunity, and extended temperature range operation. The RoHS-compliant lead-free package ensures environmental compliance for global distribution.
