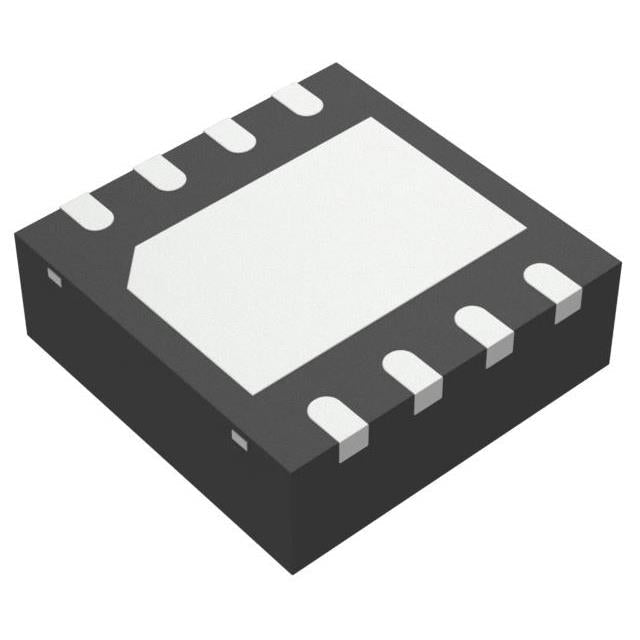

Microchip Technology PIC12F683-I/MD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.45 | $2.45 |
| 15+ | $2.37 | $35.55 |
| 25+ | $2.32 | $58.00 |
| 50+ | $2.19 | $109.50 |
| 100+ | $1.94 | $194.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 12F |
| Packaging | Tube | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 5 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (4x4) |
| Package / Case | 8-VDFN Exposed Pad |
| ROHS |  |
The Microchip PIC12F683-I/MD is a compact 8-bit PIC microcontroller designed for space-constrained embedded control. It combines 3.5KB of flash memory and 128 bytes of RAM with a rich set of peripherals including a 10-bit ADC, PWM, and multiple serial interfaces. Operating from 2V to 5.5V and up to 20MHz, it delivers reliable performance in a tiny 8-VDFN package, ideal for cost-sensitive applications.
- Wide voltage range (2V-5.5V) – enables direct battery operation without extra regulators.
- Integrated PWM and ADC – reduces external components for mixed-signal control.
- Small 8-VDFN package – saves PCB area for miniaturized designs.
- Enhanced reset features (POR, BOR, WDT) – improves system reliability in noisy environments.
Battery-Powered Sensor Nodes
The 2V minimum supply voltage and low-power sleep modes allow extended operation in coin-cell powered environmental monitors.
PWM Motor Control
With a 20MHz clock and hardware PWM, it can generate precise control signals for small DC motors in toys and pumps.
LED Dimming and Lighting
Use the PWM module to create smooth dimming curves for LED drivers, with the WDT ensuring safe restart on faults.
Portable Medical Devices
The small 8-VDFN package and 3.5KB flash fit compact glucose meters or pulse oximeters, while the ADC reads biosensors.
Automotive Interior Sensing
Operating from -40°C to 85°C, it handles cabin temperature and pressure sensing, with Brown-out Reset protecting against voltage dips.
Industrial Proximity Switches
Its fast wake-up and comparator inputs enable quick response in inductive proximity detectors used on assembly lines.
- Q: What is the operating voltage range of the PIC12F683-I/MD?
- A: It operates from 2V to 5.5V, making it suitable for battery-powered and 3.3V/5V systems.
- Q: What is the maximum CPU speed?
- A: The microcontroller runs at up to 20MHz, providing fast instruction execution for its class.
- Q: Does it include an analog-to-digital converter?
- A: Yes, it features a 10-bit ADC with multiple channels, ideal for sensor interfacing.
- Q: What package is available?
- A: It comes in an 8-VDFN exposed pad package, which aids thermal dissipation and saves board space.
- Q: Is there a watchdog timer?
- A: Yes, it includes a WDT along with POR and Brown-out Reset for reliable operation.
PIC12F683-I/MD.pdf
- Q: What is the operating voltage range of the PIC12F683-I/MD?
- A: It operates from 2V to 5.5V, making it suitable for battery-powered and 3.3V/5V systems.
- Q: What is the maximum CPU speed?
- A: The microcontroller runs at up to 20MHz, providing fast instruction execution for its class.
- Q: Does it include an analog-to-digital converter?
- A: Yes, it features a 10-bit ADC with multiple channels, ideal for sensor interfacing.
- Q: What package is available?
- A: It comes in an 8-VDFN exposed pad package, which aids thermal dissipation and saves board space.
- Q: Is there a watchdog timer?
- A: Yes, it includes a WDT along with POR and Brown-out Reset for reliable operation.
