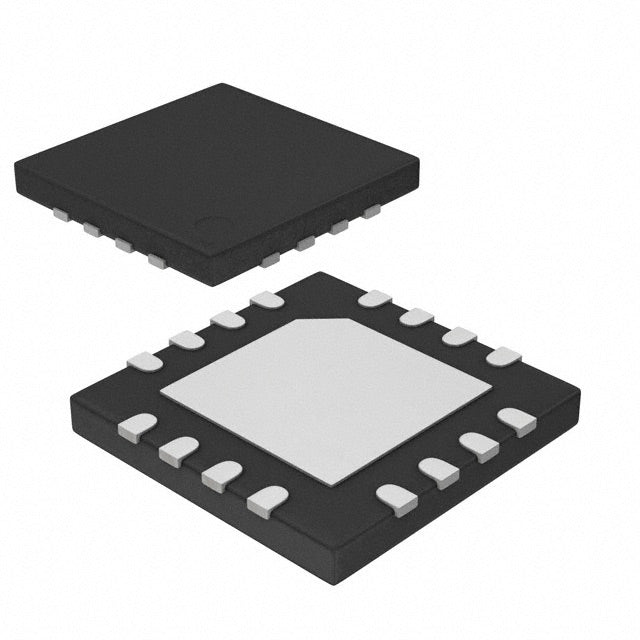

Microchip Technology PIC16F1823-E/JQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.45 | $1.45 |
| 15+ | $1.41 | $21.15 |
| 25+ | $1.38 | $34.50 |
| 50+ | $1.30 | $65.00 |
| 100+ | $1.15 | $115.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F |
| Packaging | Tube | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-UQFN (4x4) |
| Package / Case | 16-UQFN Exposed Pad |
| ROHS |  |
The Microchip PIC16F1823-E/JQ is an 8-bit MCU with a 32MHz core, 3.5KB flash, and 128B RAM. It features brown-out reset, POR, PWM, and WDT, operating from 1.8V to 5.5V. The 16-UQFN package is ideal for space-constrained designs, with an extended temperature range of -40°C to 125°C for harsh environments.
- Extended temperature range (-40°C to 125°C): Reliable in automotive and industrial settings.
- Ultra-low voltage operation (1.8V): Extends battery life in portable devices.
- Compact 16-UQFN package: Minimizes PCB footprint for miniaturized designs.
- Integrated PWM and WDT: Reduces external components and improves system reliability.
Automotive Sensor Nodes
With 125°C rating and 1.8V operation, it suits engine bay sensors like pressure or temperature transmitters.
Battery-Powered Tools
Low 1.8V operation and WDT enable long-life operation in cordless drills or test equipment.
LED Lighting Control
PWM outputs and small 16-UQFN package allow compact RGB LED drivers with color mixing.
Industrial Process Control
Brown-out reset and wide voltage range ensure stable operation in factory automation I/O modules.
Consumer Appliances
3.5KB flash is sufficient for simple washing machine or coffee maker control sequences.
Portable Instrumentation
128B RAM and low-power modes support handheld multimeters or thermocouple readers.
- Q: What is the temperature range?
- A: It operates from -40°C to 125°C, suitable for automotive and industrial environments.
- Q: What is the program memory size?
- A: It has 3.5KB flash (2K x 14) and 128 bytes RAM.
- Q: What is the supply voltage?
- A: It runs from 1.8V to 5.5V, supporting low-voltage battery applications.
- Q: Does it have PWM?
- A: Yes, it includes PWM modules for motor or LED control.
