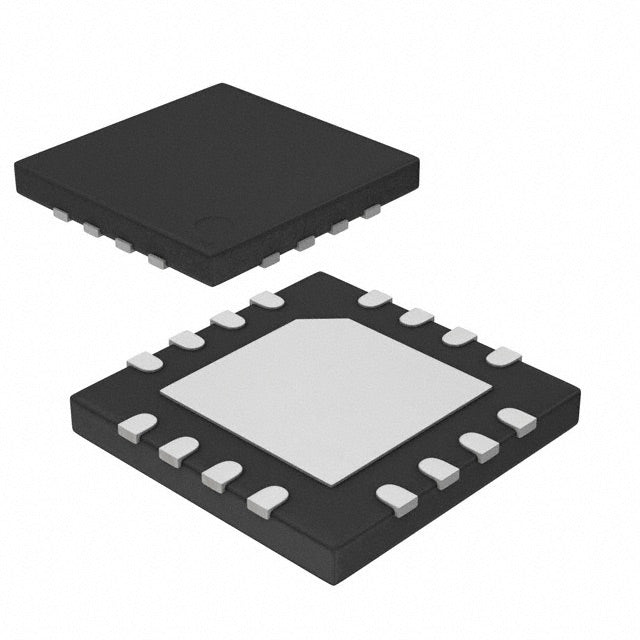

Microchip Technology PIC16F18326T-I/JQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F, Functional Safety (FuSa) |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 28KB (16K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 11x10b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-UQFN (4x4) |
| Package / Case | 16-UQFN Exposed Pad |
| ROHS |  |
The Microchip PIC16F18326T-I/JQ is a high-performance 8-bit PIC microcontroller with 28KB of Flash and 2KB of SRAM. Operating at up to 32MHz and from 2.3V to 5.5V, it integrates advanced peripherals like PWM, watchdog timer, and brown-out detection. Its compact 16-UQFN package makes it ideal for space-constrained applications requiring robust performance.
- Large Flash Memory: 28KB provides ample space for complex firmware and data tables.
- High-Speed 32MHz Operation: Enables fast response in real-time control applications.
- Wide Voltage Range: 2.3V to 5.5V offers flexibility in mixed-voltage designs.
- Compact UQFN Package: Saves PCB space while providing excellent thermal performance.
Automotive Lighting Control
With 32MHz speed and PWM, it can drive complex LED matrix lighting for headlamps or interior ambient lighting.
Industrial Sensor Processing
Its 28KB Flash allows storing calibration data and running PID algorithms for pressure or flow sensors.
Consumer Appliance Panels
The UQFN package and rich peripherals support capacitive touch sensing and display control in microwaves or washing machines.
Power Supply Management
It can implement digital control loops for DC-DC converters, with brown-out detection ensuring safe startup.
Medical Device Peripherals
The -40°C to 85°C range and reliable operation make it suitable for infusion pump controllers or patient monitors.
Smart Agriculture Nodes
Low power modes and robust I/O enable soil moisture sensing and irrigation control in remote field deployments.
- Q: What is the maximum CPU speed of the PIC16F18326T-I/JQ?
- A: It operates at up to 32MHz.
- Q: What is the supply voltage range?
- A: It runs from 2.3V to 5.5V, compatible with both 3.3V and 5V systems.
- Q: How much Flash program memory does it have?
- A: It features 28KB of Flash memory.
- Q: What package is available?
- A: It comes in a 16-UQFN exposed pad package.
- Q: Does it include a watchdog timer?
- A: Yes, it has a watchdog timer (WDT) for system reliability.
