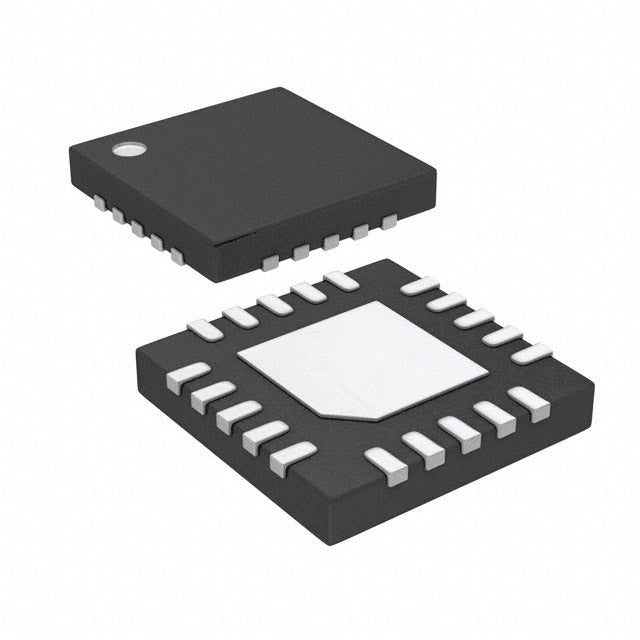

Microchip Technology PIC16F18446T-I/GZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.57 | $1.57 |
| 15+ | $1.52 | $22.80 |
| 25+ | $1.49 | $37.25 |
| 50+ | $1.40 | $70.00 |
| 100+ | $1.24 | $124.00 |
| N+ | $0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F, Functional Safety (FuSa) |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | EUSART, I2C, LINbus, MSSP, SMBus/PMBus, RS-232, RS-485, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 28KB (16K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 17x12b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-UQFN (4x4) |
| Package / Case | 20-UFQFN Exposed Pad |
| ROHS |  |
The Microchip PIC16F18446T-I/GZ is a feature-rich 8-bit microcontroller in a compact 20-UFQFN package. It provides 28KB of Flash and 2KB of RAM, operating at up to 32 MHz. This device is designed for space-constrained applications that require a balance of memory, peripherals, and low power consumption.
- High Memory Density: Offers 28KB of Flash, ample for complex firmware in a small package.
- Compact Footprint: The 20-UFQFN package is ideal for miniaturized designs.
- Low Power Consumption: Features multiple sleep modes to optimize battery life in portable devices.
- Core Independent Peripherals: Allows peripherals to operate without CPU intervention, improving system efficiency.
Compact Sensor Hubs
Combine its small 20-UFQFN package with multiple communication interfaces to create a central hub for various digital and analog sensors.
Touch-Enabled Interfaces
Utilize the integrated Core Independent Peripherals (CIPs) to implement capacitive touch sensing for modern user interfaces.
Power-Efficient Data Logging
Use its low-power modes and large memory to log data from environmental or industrial sensors over extended periods.
Motor Control for Small Appliances
Generate precise PWM signals to control the speed of small motors in fans, mixers, and other household appliances.
Signal Conditioning and Control
Leverage the high-resolution ADC and comparators to condition and process analog signals in control loops.
Communication Bridge
Act as a bridge between different serial protocols like I2C, SPI, and UART, enabling communication between various system components.
- Q: What is the program memory size?
- A: It has 28KB of Flash program memory.
- Q: What is the maximum speed?
- A: The PIC16F18446T-I/GZ operates at up to 32 MHz.
- Q: What is the package type?
- A: It is available in a 20-pin UFQFN package.
- Q: What is the operating voltage range?
- A: It operates between 2.3V and 5.5V.
