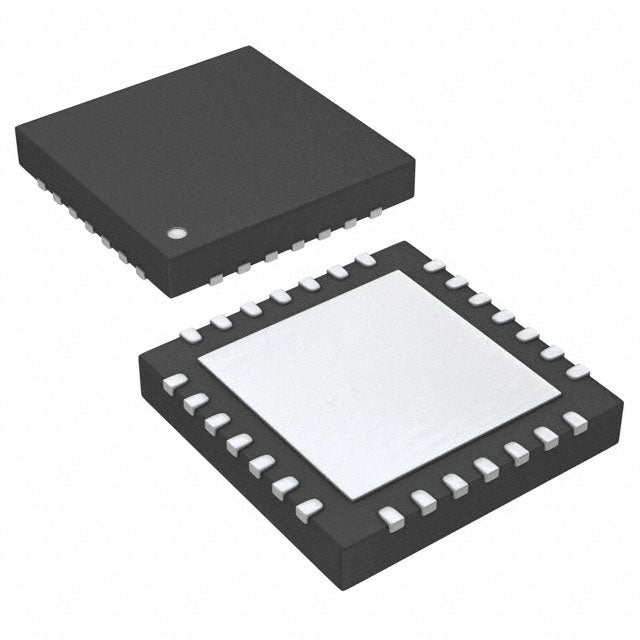

Microchip Technology PIC18F23K22-E/MV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 18K |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 48MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 19x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UQFN (4x4) |
| Package / Case | 28-UFQFN Exposed Pad |
| ROHS |  |
The PIC18F23K22-E/MV from Microchip is a high-performance 8-bit MCU featuring a 48MHz core, 8KB flash, and 512 bytes RAM. It operates from 2.3V to 5.5V and comes in a compact 28-UFQFN package. Integrated peripherals include PWM, brown-out reset, HLVD, and watchdog timer, making it ideal for industrial and automotive control applications.
- Wide voltage range (2.3-5.5V) – simplifies power supply design for mixed 3.3V/5V systems.
- Extended temperature range (-40°C to 125°C) – ensures reliability in harsh environments.
- 48MHz performance – delivers fast interrupt response for time-critical control loops.
- Compact UFQFN package – saves board space for miniaturized IoT devices.
Industrial Sensor Interface
Use the 48 MHz PIC core with 8KB flash to process multiple analog sensor inputs via PWM and comparator modules, ensuring real-time response in factory automation.
Battery-Powered Handheld Tools
With 2.3V minimum supply and low-power WDT, this MCU extends battery life in portable diagnostic equipment while maintaining reliable brown-out protection.
Automotive Body Control Module
The -40°C to 125°C range and HLVD support make it suitable for under-hood lighting or window lift controllers, where voltage spikes are common.
Smart Home Thermostat
Combine 512 bytes RAM with PWM outputs to drive heater relays and read NTC thermistors, all within a tiny 28-UFQFN footprint for wall-mounted PCBs.
Medical Monitoring Patch
Low-voltage operation and small package enable wearable vital-sign monitors that sample biosignals and trigger alerts via external interrupt pins.
Motor Control for Drones
Use the 48MHz clock and PWM channels to generate precise ESC signals, while WDT ensures recovery from firmware hangs during flight.
- Q: What is the operating voltage range?
- A: 2.3V to 5.5V, suitable for battery and 3.3V/5V systems.
- Q: What is the maximum CPU speed?
- A: 48 MHz, enabling fast instruction execution.
- Q: What package is available?
- A: 28-UFQFN exposed pad, compact for space-constrained designs.
- Q: Does it include analog peripherals?
- A: Yes, with PWM, HLVD, POR, BOR, and WDT for robust control.
